torc::physical::Named Class Reference
Concept for any object that can be named. More...
#include <Named.hpp>

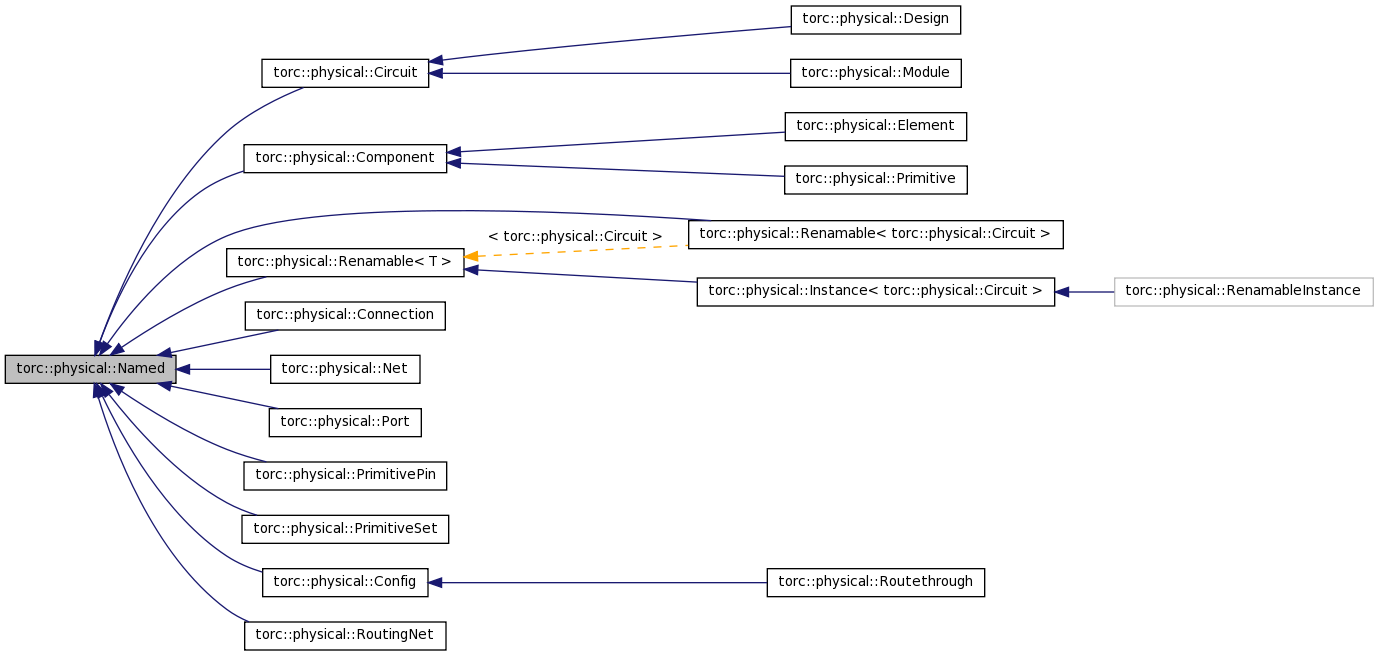

Inheritance diagram for torc::physical::Named:
Public Member Functions | |
| Named (const string &inName) | |
| Constructor which must specify the object name. | |
| const string & | getName (void) const |
| Returns the object name. | |
| bool | operator== (const Named &rhs) const |
| Equality operator. | |
Protected Types | |
| typedef std::string | string |
| Imported type name. | |
Protected Attributes | |
| string | mName |
| The name of the object. | |
Detailed Description
Concept for any object that can be named.No support is provided at this level for renaming, because many subclasses may may require oversight from their parent to avoid name collisions.
- Todo:
- Add a setName() accessor to support renaming. For many design elements, this may require permission from the parent, to avoid name collisions. We could make the function virtual, but that would come at the cost of a vtable, and that's very expensive for things like Config objects. In general, the renaming should probably be managed by the Progeny<T> template.
Definition at line 36 of file Named.hpp.
Member Typedef Documentation
typedef std::string torc::physical::Named::string [protected] |
Imported type name.
Reimplemented in torc::physical::Component, torc::physical::Connection, torc::physical::Primitive, torc::physical::PrimitivePin, torc::physical::PrimitiveSet, torc::physical::RoutingNet, torc::physical::Circuit, torc::physical::Config, torc::physical::Design, torc::physical::Instance, torc::physical::Module, torc::physical::Net, torc::physical::Port, torc::physical::Renamable< T >, torc::physical::Routethrough, and torc::physical::Renamable< torc::physical::Circuit >.
Constructor & Destructor Documentation
| torc::physical::Named::Named | ( | const string & | inName | ) | [inline] |
Member Function Documentation
| const string& torc::physical::Named::getName | ( | void | ) | const [inline] |
| bool torc::physical::Named::operator== | ( | const Named & | rhs | ) | const [inline] |
Member Data Documentation
string torc::physical::Named::mName [protected] |
The documentation for this class was generated from the following file:
- torc/physical/Named.hpp
