torc::physical::Net Class Reference

Physical design net. More...

#include <Net.hpp>

Inheritance diagram for torc::physical::Net:

[legend]

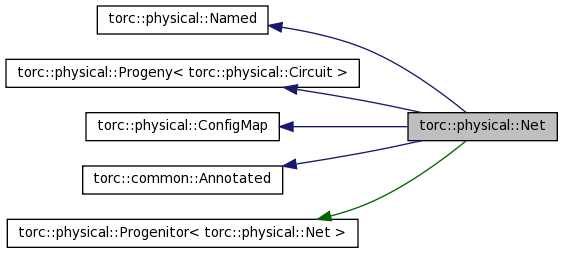

Collaboration diagram for torc::physical::Net:

[legend]

List of all members.

Public Types
typedef InstancePinSharedPtrVector::const_iterator	InstancePinSharedPtrConstIterator
	Constant iterator to InstancePin shared pointer objects.
typedef InstancePinSharedPtrVector::iterator	InstancePinSharedPtrIterator
	Non-constant iterator to InstancePin shared pointer objects.
typedef PipVector::const_iterator	PipConstIterator
	Constant iterator to Pip objects.
typedef PipVector::iterator	PipIterator
	Non-constant iterator to Pip objects.
Public Member Functions
bool	containsSource (InstancePinSharedPtr &inInstancePinPtr) const
	Determines whether the given instance pin is a source of this net.
bool	containsSink (InstancePinSharedPtr &inInstancePinPtr) const
	Determines whether the given instance pin is a sink of this net.
bool	containsPip (const Pip &inPip) const
	Determines whether the net contains the given pip.
void	addSource (InstancePinSharedPtr &inInstancePinPtr)
	Adds the given instance pin as a source for this net.
void	addSink (InstancePinSharedPtr &inInstancePinPtr)
	Adds the given instance pin as a sink for this net.
bool	removeSource (InstancePinSharedPtr &inInstancePinPtr)
	Removes the given instance pin from the sources of this net.
bool	removeSink (InstancePinSharedPtr &inInstancePinPtr)
	Removes the given instance pin from the sinks of this net.
void	addPip (const Pip &inPip)
	Adds the given pip to this net.
bool	removePip (const Pip &inPip)
	Removes the given pip from this net.
void	unroute (void)
	Unroute the net.
bool	hasAnySources (void) const
	Returns true if the net has any sources.
bool	hasOneSource (void) const
	Returns true if the net has exactly one source.
bool	hasMultipleSources (void) const
	Returns true if the net has more than one source.
size_t	getSourceCount (void) const
	Returns the number of sources on the net.
bool	hasAnySinks (void) const
	Returns true if the net has any sinks.
bool	hasOneSink (void) const
	Returns true if the net has exactly one sink.
bool	hasMultipleSinks (void) const
	Returns true if the next has more than one sink.
size_t	getSinkCount (void) const
	Returns the number of sinks on the net.
bool	hasAnyPips (void) const
	Returns true if the net has any pips.
size_t	getPipCount (void) const
	Returns the number of pips on the net.
bool	isRouted (void) const
	Returns true if the net has any pips.
bool	isUnrouted (void) const
	Returns true if the net has no pips.
InstancePinSharedPtrConstIterator	sourcesBegin (void) const
	Returns the begin constant iterator for source instance pins.
InstancePinSharedPtrConstIterator	sourcesEnd (void) const
	Returns the end constant iterator for source instance pins.
InstancePinSharedPtrIterator	sourcesBegin (void)
	Returns the begin non-constant iterator for source instance pins.
InstancePinSharedPtrIterator	sourcesEnd (void)
	Returns the end non-constant iterator for source instance pins.
InstancePinSharedPtrConstIterator	sinksBegin (void) const
	Returns the begin constant iterator for sink instance pins.
InstancePinSharedPtrConstIterator	sinksEnd (void) const
	Returns the end constant iterator for sink instance pins.
InstancePinSharedPtrIterator	sinksBegin (void)
	Returns the begin non-constant iterator for sink instance pins.
InstancePinSharedPtrIterator	sinksEnd (void)
	Returns the end non-constant iterator for sink instance pins.
PipConstIterator	pipsBegin (void) const
	Returns the begin constant iterator for pips.
PipConstIterator	pipsEnd (void) const
	Returns the end constant iterator for pips.
PipIterator	pipsBegin (void)
	Returns the begin non-constant iterator for pips.
PipIterator	pipsEnd (void)
	Returns the end non-constant iterator for pips.
ENetType	getNetType (void) const
	Returns the net power type. See ENetPowerType.
void	setNetType (ENetType inNetType)
	Sets the net power type. See ENetPowerType.
bool	operator== (const Net &rhs) const
	Equality operator.
Protected Types
typedef std::string	string
	Imported type name.
Protected Member Functions
	Net (const string &inName, ENetType inNetType)
	Protected constructor.
Protected Attributes
ENetType	mNetType
	The net power type. See ENetType.
InstancePinSharedPtrVector	mSources
	Vector of instance pin shared pointer sources for the net.
InstancePinSharedPtrVector	mSinks
	Vector of instance pin shared pointer sinks for the net.
PipVector	mPips
	Vector of pips for the net.
Friends
class	Factory
	The Factory class has direct access to our internals.

---

Detailed Description

Physical design net.

The Net class owns its instance pins and its pips, and is responsible for deleting them.

Todo:

Consider checking for duplicates whenever a source, sink, or pip is added. On the other hand, we provide the functions to check for existing resources, so perhaps we can just leave it to the user.

Definition at line 41 of file Net.hpp.

---

Member Typedef Documentation

typedef std::string torc::physical::Net::string [protected]

Imported type name.

Reimplemented from torc::physical::ConfigMap.

Definition at line 49 of file Net.hpp.

typedef InstancePinSharedPtrVector::const_iterator torc::physical::Net::InstancePinSharedPtrConstIterator

Constant iterator to InstancePin shared pointer objects.

Definition at line 68 of file Net.hpp.

typedef InstancePinSharedPtrVector::iterator torc::physical::Net::InstancePinSharedPtrIterator

Non-constant iterator to InstancePin shared pointer objects.

Definition at line 70 of file Net.hpp.

typedef PipVector::const_iterator torc::physical::Net::PipConstIterator

Constant iterator to Pip objects.

Definition at line 72 of file Net.hpp.

typedef PipVector::iterator torc::physical::Net::PipIterator

Non-constant iterator to Pip objects.

Definition at line 74 of file Net.hpp.

---

Constructor & Destructor Documentation

torc::physical::Net::Net	(	const string &	inName,
		ENetType	inNetType
	)			[inline, protected]

Protected constructor.

Parameters:

	inName	The net name.
	inNetType	The net power type.

Definition at line 63 of file Net.hpp.

---

Member Function Documentation

bool torc::physical::Net::containsSource

(

InstancePinSharedPtr &

inInstancePinPtr

)

const [inline]

Determines whether the given instance pin is a source of this net.

Returns:

true if the given instance pin is a source of this net, or false otherwise.

Definition at line 78 of file Net.hpp.

bool torc::physical::Net::containsSink

(

InstancePinSharedPtr &

inInstancePinPtr

)

const [inline]

Determines whether the given instance pin is a sink of this net.

Returns:

true if the given instance pin is a sink of this net, or false otherwise.

Definition at line 83 of file Net.hpp.

bool torc::physical::Net::containsPip

(

const Pip &

inPip

)

const [inline]

Determines whether the net contains the given pip.

Returns:

true if the net contains the given pip, or false otherwise.

Definition at line 88 of file Net.hpp.

void torc::physical::Net::addSource

(

InstancePinSharedPtr &

inInstancePinPtr

)

[inline]

Adds the given instance pin as a source for this net.

Duplicate sources are not currently discarded.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 93 of file Net.hpp.

void torc::physical::Net::addSink

(

InstancePinSharedPtr &

inInstancePinPtr

)

[inline]

Adds the given instance pin as a sink for this net.

Duplicate sinks are not currently discarded.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 103 of file Net.hpp.

bool torc::physical::Net::removeSource

(

InstancePinSharedPtr &

inInstancePinPtr

)

[inline]

Removes the given instance pin from the sources of this net.

Returns:

true if the instance pin was removed from the source list, or false if it was not found.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 114 of file Net.hpp.

bool torc::physical::Net::removeSink

(

InstancePinSharedPtr &

inInstancePinPtr

)

[inline]

Removes the given instance pin from the sinks of this net.

Returns:

true if the instance pin was removed from the sink list, or false if it was not found.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 127 of file Net.hpp.

void torc::physical::Net::addPip

(

const Pip &

inPip

)

[inline]

Adds the given pip to this net.

Duplicate pips are not currently discarded.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 139 of file Net.hpp.

bool torc::physical::Net::removePip

(

const Pip &

inPip

)

[inline]

Removes the given pip from this net.

Returns:

true if the pip was removed from this net, or false if it was not found.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 147 of file Net.hpp.

void torc::physical::Net::unroute

(

void

)

[inline]

Unroute the net.

The net is unrouted by clearing its pip list.

Definition at line 161 of file Net.hpp.

bool torc::physical::Net::hasAnySources

(

void

)

const [inline]

Returns true if the net has any sources.

Definition at line 166 of file Net.hpp.

bool torc::physical::Net::hasOneSource

(

void

)

const [inline]

Returns true if the net has exactly one source.

Definition at line 168 of file Net.hpp.

bool torc::physical::Net::hasMultipleSources

(

void

)

const [inline]

Returns true if the net has more than one source.

Definition at line 170 of file Net.hpp.

size_t torc::physical::Net::getSourceCount

(

void

)

const [inline]

Returns the number of sources on the net.

Definition at line 172 of file Net.hpp.

bool torc::physical::Net::hasAnySinks

(

void

)

const [inline]

Returns true if the net has any sinks.

Definition at line 174 of file Net.hpp.

bool torc::physical::Net::hasOneSink

(

void

)

const [inline]

Returns true if the net has exactly one sink.

Definition at line 176 of file Net.hpp.

bool torc::physical::Net::hasMultipleSinks

(

void

)

const [inline]

Returns true if the next has more than one sink.

Definition at line 178 of file Net.hpp.

size_t torc::physical::Net::getSinkCount

(

void

)

const [inline]

Returns the number of sinks on the net.

Definition at line 180 of file Net.hpp.

bool torc::physical::Net::hasAnyPips

(

void

)

const [inline]

Returns true if the net has any pips.

Definition at line 182 of file Net.hpp.

size_t torc::physical::Net::getPipCount

(

void

)

const [inline]

Returns the number of pips on the net.

Definition at line 184 of file Net.hpp.

bool torc::physical::Net::isRouted

(

void

)

const [inline]

Returns true if the net has any pips.

Definition at line 186 of file Net.hpp.

bool torc::physical::Net::isUnrouted

(

void

)

const [inline]

Returns true if the net has no pips.

Definition at line 188 of file Net.hpp.

InstancePinSharedPtrConstIterator torc::physical::Net::sourcesBegin

(

void

)

const [inline]

Returns the begin constant iterator for source instance pins.

Definition at line 191 of file Net.hpp.

InstancePinSharedPtrConstIterator torc::physical::Net::sourcesEnd

(

void

)

const [inline]

Returns the end constant iterator for source instance pins.

Definition at line 193 of file Net.hpp.

InstancePinSharedPtrIterator torc::physical::Net::sourcesBegin

(

void

)

[inline]

Returns the begin non-constant iterator for source instance pins.

Definition at line 195 of file Net.hpp.

InstancePinSharedPtrIterator torc::physical::Net::sourcesEnd

(

void

)

[inline]

Returns the end non-constant iterator for source instance pins.

Definition at line 197 of file Net.hpp.

InstancePinSharedPtrConstIterator torc::physical::Net::sinksBegin

(

void

)

const [inline]

Returns the begin constant iterator for sink instance pins.

Definition at line 199 of file Net.hpp.

InstancePinSharedPtrConstIterator torc::physical::Net::sinksEnd

(

void

)

const [inline]

Returns the end constant iterator for sink instance pins.

Definition at line 201 of file Net.hpp.

InstancePinSharedPtrIterator torc::physical::Net::sinksBegin

(

void

)

[inline]

Returns the begin non-constant iterator for sink instance pins.

Definition at line 203 of file Net.hpp.

InstancePinSharedPtrIterator torc::physical::Net::sinksEnd

(

void

)

[inline]

Returns the end non-constant iterator for sink instance pins.

Definition at line 205 of file Net.hpp.

PipConstIterator torc::physical::Net::pipsBegin

(

void

)

const [inline]

Returns the begin constant iterator for pips.

Definition at line 207 of file Net.hpp.

PipConstIterator torc::physical::Net::pipsEnd

(

void

)

const [inline]

Returns the end constant iterator for pips.

Definition at line 209 of file Net.hpp.

PipIterator torc::physical::Net::pipsBegin

(

void

)

[inline]

Returns the begin non-constant iterator for pips.

Definition at line 211 of file Net.hpp.

PipIterator torc::physical::Net::pipsEnd

(

void

)

[inline]

Returns the end non-constant iterator for pips.

Definition at line 213 of file Net.hpp.

ENetType torc::physical::Net::getNetType

(

void

)

const [inline]

Returns the net power type. See ENetPowerType.

Definition at line 216 of file Net.hpp.

void torc::physical::Net::setNetType

(

ENetType

inNetType

)

[inline]

Sets the net power type. See ENetPowerType.

Definition at line 218 of file Net.hpp.

bool torc::physical::Net::operator==

(

const Net &

rhs

)

const [inline]

Equality operator.

This function deems nets equal if their names are identical.

Parameters:

rhs

The net to compare against.

Returns:

true if both net names are identical, or false otherwise.

Definition at line 224 of file Net.hpp.

---

Friends And Related Function Documentation

friend class Factory [friend]

The Factory class has direct access to our internals.

Reimplemented from torc::physical::Progenitor< T >.

Definition at line 45 of file Net.hpp.

---

Member Data Documentation

ENetType torc::physical::Net::mNetType [protected]

The net power type. See ENetType.

Definition at line 52 of file Net.hpp.

InstancePinSharedPtrVector torc::physical::Net::mSources [protected]

Vector of instance pin shared pointer sources for the net.

Definition at line 54 of file Net.hpp.

InstancePinSharedPtrVector torc::physical::Net::mSinks [protected]

Vector of instance pin shared pointer sinks for the net.

Definition at line 56 of file Net.hpp.

PipVector torc::physical::Net::mPips [protected]

Vector of pips for the net.

Definition at line 58 of file Net.hpp.

---

The documentation for this class was generated from the following file:

• torc/physical/Net.hpp
