torc::physical::InstancePin Class Reference
Physical design instance-pin pair, suitable for specifying a net endpoint. More...
#include <InstancePin.hpp>
Protected Member Functions | |
| InstancePin (InstanceSharedPtr inInstancePtr, const string &inPinName) | |
| Protected constructor. | |
Private Member Functions | |
| InstancePin (const InstancePin &rhs) | |
| Disabled copy constructor. | |
Friends | |
| class | Factory |
| The Factory class has direct access to our internals. | |
| class | Net |
| The Net class has direct access to our internals. | |
Detailed Description

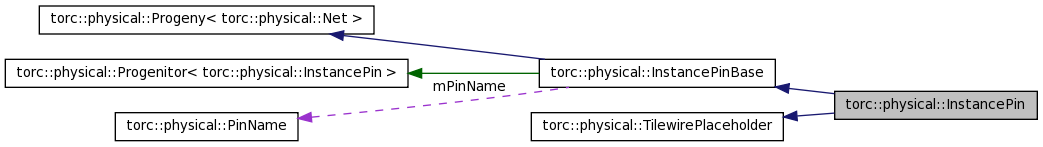

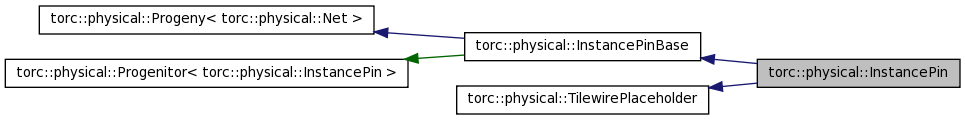

Physical design instance-pin pair, suitable for specifying a net endpoint.This class specifies a pin on a physical design instance. Note that this class has a TilewirePlaceholder as a base class, and is directly analogous to its Tilewire-aware counterpart, torc::architecture::InstancePin. This approach is used to avoid importing torc::architecture dependencies into torc::physical for users who do not require device database functionality.
- See also:
- SitePin.
Definition at line 87 of file InstancePin.hpp.
Constructor & Destructor Documentation
| torc::physical::InstancePin::InstancePin | ( | InstanceSharedPtr | inInstancePtr, | |
| const string & | inPinName | |||
| ) | [inline, protected] |
Protected constructor.
- Parameters:
-
inInstancePtr The pin instance pointer. inPinName The pin name.
Definition at line 100 of file InstancePin.hpp.
| torc::physical::InstancePin::InstancePin | ( | const InstancePin & | rhs | ) | [inline, private] |
Friends And Related Function Documentation
friend class Factory [friend] |
The Factory class has direct access to our internals.
Reimplemented from torc::physical::Progenitor< T >.
Definition at line 90 of file InstancePin.hpp.
friend class Net [friend] |
The Net class has direct access to our internals.
The parent Net can use this to direct the InstancePin to register itself with its related Instance.
Definition at line 94 of file InstancePin.hpp.
The documentation for this class was generated from the following file:
- torc/physical/InstancePin.hpp
