torc::architecture::InstancePin Class Reference

Physical design instance-pin pair, suitable for specifying a net endpoint. More...

#include <InstancePin.hpp>

Inheritance diagram for torc::architecture::InstancePin:

[legend]

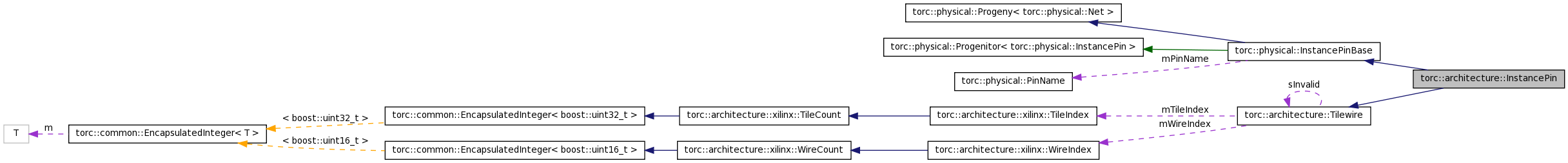

Collaboration diagram for torc::architecture::InstancePin:

[legend]

List of all members.

Public Types
typedef boost::shared_ptr < class::torc::architecture::InstancePin >	ArchitectureInstancePinPtr
typedef boost::shared_ptr < class::torc::physical::InstancePin >	PhysicalInstancePinPtr
Public Member Functions
void	updateTilewire (class DDB &inDDB)
	Updates the Tilewire from the instance and pin names.
Tilewire &	getTilewire (void)
	Returns the Tilewire designated by this instance pin.
Static Public Member Functions
static ArchitectureInstancePinPtr &	physicalToArchitecture (PhysicalInstancePinPtr &inInstancePinSharedPtr)
	Typecasts a torc::physical::InstancePin to a torc::architecture::InstancePin.
static PhysicalInstancePinPtr &	architectureToPhysical (ArchitectureInstancePinPtr &inInstancePinSharedPtr)
Protected Member Functions
	InstancePin (torc::physical::InstanceSharedPtr inInstancePtr, const string &inPinName)
	Protected constructor.
Private Member Functions
	InstancePin (const InstancePin &rhs)
	Disabled copy constructor.

---

Detailed Description

Physical design instance-pin pair, suitable for specifying a net endpoint.

This class is a Tilewire-aware version of torc::physical::InstancePin. It functions as an encapsulation of an InstancePin and its corresponding Tilewire.

Definition at line 31 of file InstancePin.hpp.

---

Constructor & Destructor Documentation

torc::architecture::InstancePin::InstancePin	(	torc::physical::InstanceSharedPtr	inInstancePtr,
		const string &	inPinName
	)			[inline, protected]

Protected constructor.

Parameters:

	inInstancePtr	The pin instance pointer.
	inPinName	The pin name.

Definition at line 37 of file InstancePin.hpp.

torc::architecture::InstancePin::InstancePin

(

const InstancePin &

rhs

)

[inline, private]

Disabled copy constructor.

Definition at line 42 of file InstancePin.hpp.

---

Member Function Documentation

static ArchitectureInstancePinPtr& torc::architecture::InstancePin::physicalToArchitecture

(

PhysicalInstancePinPtr &

inInstancePinSharedPtr

)

[inline, static]

Typecasts a torc::physical::InstancePin to a torc::architecture::InstancePin.

Definition at line 49 of file InstancePin.hpp.

void torc::architecture::InstancePin::updateTilewire

(

class DDB &

inDDB

)

Updates the Tilewire from the instance and pin names.

Definition at line 25 of file InstancePin.cpp.

Tilewire& torc::architecture::InstancePin::getTilewire

(

void

)

[inline]

Returns the Tilewire designated by this instance pin.

Definition at line 62 of file InstancePin.hpp.

---

The documentation for this class was generated from the following files:

• torc/architecture/InstancePin.hpp
• torc/architecture/InstancePin.cpp
