torc::physical::Module Class Reference

Hierarchical module. More...

#include <Module.hpp>

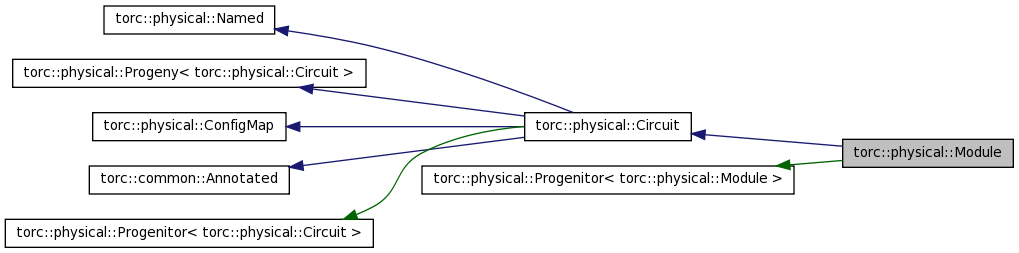

Inheritance diagram for torc::physical::Module:

[legend]

Collaboration diagram for torc::physical::Module:

[legend]

List of all members.

Public Types
typedef PortSharedPtrVector::const_iterator	PortSharedPtrConstIterator
	Constant iterator to Port shared pointers.
typedef PortSharedPtrVector::iterator	PortSharedPtrIterator
	Non-constant iterator to Port shared pointers.
Public Member Functions
PortSharedPtrIterator	findPort (const string &inName)
	Find a port by name.
bool	addPort (PortSharedPtr &inPortPtr)
	Add a port to the module.
bool	removePort (PortSharedPtr &inPortPtr)
const string &	getAnchor (void) const
	Returns the anchor instance name for this module.
void	setAnchor (const string &inAnchor)
	Sets the anchor instance name for this module.
PortSharedPtrConstIterator	portsBegin (void) const
	Returns the begin constant iterator for ports.
PortSharedPtrConstIterator	portsEnd (void) const
	Returns the end constant iterator for ports.
PortSharedPtrIterator	portsBegin (void)
	Returns the begin non-constant iterator for ports.
PortSharedPtrIterator	portsEnd (void)
	Returns the end non-constant iterator for ports.
size_t	getPortCount (void) const
	Returns the number of ports in the module.
bool	operator== (const Module &rhs) const
	Equality operator.
Protected Types
typedef std::string	string
	Imported type name.
Protected Member Functions
	Module (const string &inName, const string &inAnchor)
	Protected constructor.
Protected Attributes
string	mAnchor
	The module anchor instance name.
PortSharedPtrVector	mPorts
	Vector of Port shared pointers for the module.
Friends
class	Factory
	The Factory class has direct access to our internals.

---

Detailed Description

Hierarchical module.

Modules are used for hard macros in the Xilinx tool flow. For most users, modules never appear in XDL netlists, either because the design did not use hard macros, or because those hard macros were flattened as instances and nets directly in the design.

Definition at line 33 of file Module.hpp.

---

Member Typedef Documentation

typedef std::string torc::physical::Module::string [protected]

Imported type name.

Reimplemented from torc::physical::Circuit.

Definition at line 40 of file Module.hpp.

typedef PortSharedPtrVector::const_iterator torc::physical::Module::PortSharedPtrConstIterator

Constant iterator to Port shared pointers.

Definition at line 55 of file Module.hpp.

typedef PortSharedPtrVector::iterator torc::physical::Module::PortSharedPtrIterator

Non-constant iterator to Port shared pointers.

Definition at line 57 of file Module.hpp.

---

Constructor & Destructor Documentation

torc::physical::Module::Module	(	const string &	inName,
		const string &	inAnchor
	)			[inline, protected]

Protected constructor.

Parameters:

	inName	The module name.
	inAnchor	The anchor instance name for the module. The anchor designates the instance in the module relative to which the module will be placed.

Definition at line 51 of file Module.hpp.

---

Member Function Documentation

PortSharedPtrIterator torc::physical::Module::findPort

(

const string &

inName

)

[inline]

Find a port by name.

Parameters:

inName

The port name to look for.

Returns:

an iterator for the specified port, or portsEnd() if the name was not found.

Definition at line 62 of file Module.hpp.

bool torc::physical::Module::addPort

(

PortSharedPtr &

inPortPtr

)

[inline]

Add a port to the module.

Parameters:

inPortPtr

The port to add.

Returns:

true if the instance was added, or false if an instance with the same name already exists in the circuit.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 70 of file Module.hpp.

bool torc::physical::Module::removePort

(

PortSharedPtr &

inPortPtr

)

[inline]

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 80 of file Module.hpp.

const string& torc::physical::Module::getAnchor

(

void

)

const [inline]

Returns the anchor instance name for this module.

Definition at line 91 of file Module.hpp.

void torc::physical::Module::setAnchor

(

const string &

inAnchor

)

[inline]

Sets the anchor instance name for this module.

Definition at line 93 of file Module.hpp.

PortSharedPtrConstIterator torc::physical::Module::portsBegin

(

void

)

const [inline]

Returns the begin constant iterator for ports.

Definition at line 96 of file Module.hpp.

PortSharedPtrConstIterator torc::physical::Module::portsEnd

(

void

)

const [inline]

Returns the end constant iterator for ports.

Definition at line 98 of file Module.hpp.

PortSharedPtrIterator torc::physical::Module::portsBegin

(

void

)

[inline]

Returns the begin non-constant iterator for ports.

Definition at line 100 of file Module.hpp.

PortSharedPtrIterator torc::physical::Module::portsEnd

(

void

)

[inline]

Returns the end non-constant iterator for ports.

Definition at line 102 of file Module.hpp.

size_t torc::physical::Module::getPortCount

(

void

)

const [inline]

Returns the number of ports in the module.

Definition at line 104 of file Module.hpp.

bool torc::physical::Module::operator==

(

const Module &

rhs

)

const [inline]

Equality operator.

This function deems modules equal if their names are identical.

Parameters:

rhs

The module to compare against.

Returns:

true if both module names are identical, or false otherwise.

Definition at line 110 of file Module.hpp.

---

Friends And Related Function Documentation

friend class Factory [friend]

The Factory class has direct access to our internals.

Reimplemented from torc::physical::Progenitor< T >.

Definition at line 36 of file Module.hpp.

---

Member Data Documentation

string torc::physical::Module::mAnchor [protected]

The module anchor instance name.

Definition at line 43 of file Module.hpp.

PortSharedPtrVector torc::physical::Module::mPorts [protected]

Vector of Port shared pointers for the module.

Definition at line 45 of file Module.hpp.

---

The documentation for this class was generated from the following file:

• torc/physical/Module.hpp
