torc::physical::Design Class Reference

Physical netlist design. More...

#include <Design.hpp>

Inheritance diagram for torc::physical::Design:

[legend]

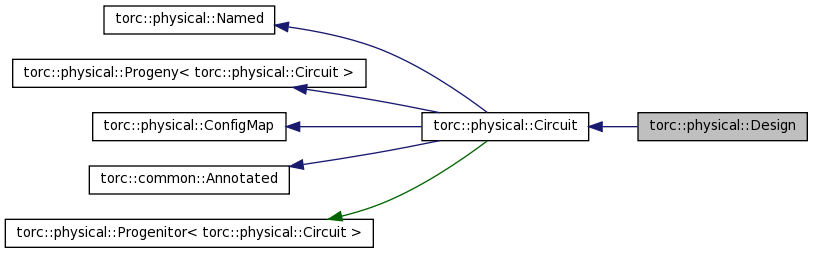

Collaboration diagram for torc::physical::Design:

[legend]

List of all members.

Public Types
typedef ModuleSharedPtrVector::const_iterator	ModuleSharedPtrConstIterator
	Constant iterator for Module shared pointers.
typedef ModuleSharedPtrVector::iterator	ModuleSharedPtrIterator
	Non-constant iterator for Module shared pointers.
Public Member Functions
ModuleSharedPtrIterator	findModule (const string &inName)
	Find a design module by name.
bool	addModule (ModuleSharedPtr &inModulePtr)
	Add a module to the design.
bool	removeModule (ModuleSharedPtr &inModulePtr)
	Remove a module from the design.
const string &	getDevice (void) const
	Returns the target device for this design.
const string &	getPackage (void) const
	Returns the device package for this design.
const string &	getSpeedGrade (void) const
	Returns the device speed grade for this design.
const string &	getXdlVersion (void) const
	Returns the XDL version for this design.
void	setDevice (const string &inDevice)
	Sets the target device for this design.
void	setPackage (const string &inPackage)
	Sets the device package for this design.
void	setSpeedGrade (const string &inSpeedGrade)
	Sets the device speed grade for this design.
void	setXdlVersion (const string &inXdlVersion)
	Sets the XDL version for this design.
size_t	getModuleCount (void) const
	Returns the number of modules in the design.
ModuleSharedPtrConstIterator	modulesBegin (void) const
	Returns the begin constant iterator for modules.
ModuleSharedPtrConstIterator	modulesEnd (void) const
	Returns the end constant iterator for modules.
ModuleSharedPtrIterator	modulesBegin (void)
	Returns the begin non-constant iterator for modules.
ModuleSharedPtrIterator	modulesEnd (void)
	Returns the end non-constant iterator for modules.
Protected Types
typedef std::string	string
	Imported type name.
Protected Member Functions
	Design (const string &inName, const string &inDevice, const string &inPackage, const string &inSpeedGrade, const string &inXdlVersion)
	Protected constructor. Designs must be created by the Factory.
Protected Attributes
ModuleSharedPtrVector	mModules
	Vector of module shared pointers.
string	mDevice
	The target device specified for this design.
string	mPackage
	The device package specified for this design.
string	mSpeedGrade
	The device speed grade specified for this design.
string	mXdlVersion
	The XDL version specified for this design.
Friends
class	Factory
	The Factory class has direct access to our internals.

---

Detailed Description

Physical netlist design.

The design is the top-level entity. It consists of an arbitrary number of modules, instances, and nets. Design objects must be created by the Factory class.

Definition at line 33 of file Design.hpp.

---

Member Typedef Documentation

typedef std::string torc::physical::Design::string [protected]

Imported type name.

Reimplemented from torc::physical::Circuit.

Definition at line 40 of file Design.hpp.

typedef ModuleSharedPtrVector::const_iterator torc::physical::Design::ModuleSharedPtrConstIterator

Constant iterator for Module shared pointers.

Definition at line 66 of file Design.hpp.

typedef ModuleSharedPtrVector::iterator torc::physical::Design::ModuleSharedPtrIterator

Non-constant iterator for Module shared pointers.

Definition at line 68 of file Design.hpp.

---

Constructor & Destructor Documentation

torc::physical::Design::Design	(	const string &	inName,
		const string &	inDevice,
		const string &	inPackage,
		const string &	inSpeedGrade,
		const string &	inXdlVersion
	)			[inline, protected]

Protected constructor. Designs must be created by the Factory.

Parameters:

	inName	The design name.
	inDevice	The design device.
	inPackage	The device package.
	inSpeedGrade	The device speed grade.
	inXdlVersion	The design XDL version.

Definition at line 59 of file Design.hpp.

---

Member Function Documentation

ModuleSharedPtrIterator torc::physical::Design::findModule

(

const string &

inName

)

[inline]

Find a design module by name.

Parameters:

inName

The module name to look for.

Returns:

an iterator for the specified module, or modulesEnd() if the name was not found.

Definition at line 74 of file Design.hpp.

bool torc::physical::Design::addModule

(

ModuleSharedPtr &

inModulePtr

)

[inline]

Add a module to the design.

Parameters:

inModulePtr

The module to add.

Returns:

true if the module was added, or false if a module with the same name already exists in the design.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 82 of file Design.hpp.

bool torc::physical::Design::removeModule

(

ModuleSharedPtr &

inModulePtr

)

[inline]

Remove a module from the design.

Parameters:

inModulePtr

The module to remove.

Returns:

true if the module was remove, or false if the module did not exist.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 94 of file Design.hpp.

const string& torc::physical::Design::getDevice

(

void

)

const [inline]

Returns the target device for this design.

Definition at line 105 of file Design.hpp.

const string& torc::physical::Design::getPackage

(

void

)

const [inline]

Returns the device package for this design.

Definition at line 107 of file Design.hpp.

const string& torc::physical::Design::getSpeedGrade

(

void

)

const [inline]

Returns the device speed grade for this design.

Definition at line 109 of file Design.hpp.

const string& torc::physical::Design::getXdlVersion

(

void

)

const [inline]

Returns the XDL version for this design.

Definition at line 111 of file Design.hpp.

void torc::physical::Design::setDevice

(

const string &

inDevice

)

[inline]

Sets the target device for this design.

Definition at line 113 of file Design.hpp.

void torc::physical::Design::setPackage

(

const string &

inPackage

)

[inline]

Sets the device package for this design.

Definition at line 115 of file Design.hpp.

void torc::physical::Design::setSpeedGrade

(

const string &

inSpeedGrade

)

[inline]

Sets the device speed grade for this design.

Definition at line 117 of file Design.hpp.

void torc::physical::Design::setXdlVersion

(

const string &

inXdlVersion

)

[inline]

Sets the XDL version for this design.

Definition at line 119 of file Design.hpp.

size_t torc::physical::Design::getModuleCount

(

void

)

const [inline]

Returns the number of modules in the design.

Definition at line 121 of file Design.hpp.

ModuleSharedPtrConstIterator torc::physical::Design::modulesBegin

(

void

)

const [inline]

Returns the begin constant iterator for modules.

Definition at line 124 of file Design.hpp.

ModuleSharedPtrConstIterator torc::physical::Design::modulesEnd

(

void

)

const [inline]

Returns the end constant iterator for modules.

Definition at line 126 of file Design.hpp.

ModuleSharedPtrIterator torc::physical::Design::modulesBegin

(

void

)

[inline]

Returns the begin non-constant iterator for modules.

Definition at line 128 of file Design.hpp.

ModuleSharedPtrIterator torc::physical::Design::modulesEnd

(

void

)

[inline]

Returns the end non-constant iterator for modules.

Definition at line 130 of file Design.hpp.

---

Friends And Related Function Documentation

friend class Factory [friend]

The Factory class has direct access to our internals.

Reimplemented from torc::physical::Progenitor< T >.

Definition at line 36 of file Design.hpp.

---

Member Data Documentation

ModuleSharedPtrVector torc::physical::Design::mModules [protected]

Vector of module shared pointers.

Definition at line 43 of file Design.hpp.

string torc::physical::Design::mDevice [protected]

The target device specified for this design.

Definition at line 45 of file Design.hpp.

string torc::physical::Design::mPackage [protected]

The device package specified for this design.

Definition at line 47 of file Design.hpp.

string torc::physical::Design::mSpeedGrade [protected]

The device speed grade specified for this design.

Definition at line 49 of file Design.hpp.

string torc::physical::Design::mXdlVersion [protected]

The XDL version specified for this design.

Definition at line 51 of file Design.hpp.

---

The documentation for this class was generated from the following file:

• torc/physical/Design.hpp
