torc::physical::Primitive Class Reference

primitive. More...

#include <Primitive.hpp>

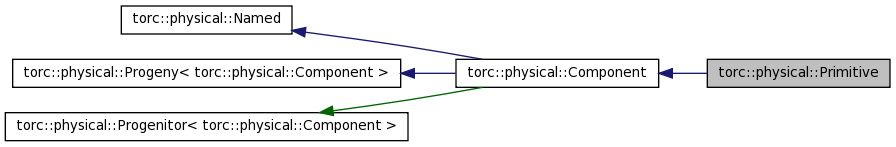

Inheritance diagram for torc::physical::Primitive:

[legend]

Collaboration diagram for torc::physical::Primitive:

[legend]

List of all members.

Public Types
typedef ElementSharedPtrVector::const_iterator	ElementSharedPtrConstIterator
	Constant iterator for Element shared pointers.
typedef ElementSharedPtrVector::iterator	ElementSharedPtrIterator
	Non-constant iterator for Element shared pointers.
Public Member Functions
ElementSharedPtrIterator	findElement (const string &inName)
	Find a primitive element by name.
bool	addElement (ElementSharedPtr &inElementPtr)
	Add a element to the primitive.
bool	removeElement (ElementSharedPtr &inElementPtr)
	Remove a element from the primitive.
bool	operator== (const Primitive &rhs) const
	Equality operator.
size_t	getElementCount (void) const
ElementSharedPtrConstIterator	elementsBegin (void) const
	Returns the begin constant iterator for elements.
ElementSharedPtrConstIterator	elementsEnd (void) const
	Returns the end constant iterator for elements.
ElementSharedPtrIterator	elementsBegin (void)
	Returns the begin non-constant iterator for elements.
ElementSharedPtrIterator	elementsEnd (void)
	Returns the end non-constant iterator for elements.
Protected Types
typedef std::string	string
	Imported type name.
Protected Member Functions
	Primitive (const string &inName)
Protected Attributes
ElementSharedPtrVector	mElements
	Vector of element shared pointers.
Friends
class	RcFactory
	The Factory class has direct access to our internals.

---

Detailed Description

primitive.

Definition at line 33 of file Primitive.hpp.

---

Member Typedef Documentation

typedef std::string torc::physical::Primitive::string [protected]

Imported type name.

Reimplemented from torc::physical::Component.

Definition at line 42 of file Primitive.hpp.

typedef ElementSharedPtrVector::const_iterator torc::physical::Primitive::ElementSharedPtrConstIterator

Constant iterator for Element shared pointers.

Definition at line 53 of file Primitive.hpp.

typedef ElementSharedPtrVector::iterator torc::physical::Primitive::ElementSharedPtrIterator

Non-constant iterator for Element shared pointers.

Definition at line 55 of file Primitive.hpp.

---

Member Function Documentation

ElementSharedPtrIterator torc::physical::Primitive::findElement

(

const string &

inName

)

[inline]

Find a primitive element by name.

Parameters:

inName

The element name to look for.

Returns:

an iterator for the specified element, or elementsEnd() if the name was not found.

Definition at line 61 of file Primitive.hpp.

bool torc::physical::Primitive::addElement

(

ElementSharedPtr &

inElementPtr

)

[inline]

Add a element to the primitive.

Parameters:

inElementPtr

The element to add.

Returns:

true if the element was added, or false if a element with the same name already exists in the primitive.

Todo:

Acquire mutex.

Todo:

Release mutex.

Definition at line 69 of file Primitive.hpp.

bool torc::physical::Primitive::removeElement

(

ElementSharedPtr &

inElementPtr

)

[inline]

Remove a element from the primitive.

Parameters:

inElementPtr

The element to remove.

Returns:

true if the element was remove, or false if the element did not exist.

Todo:

Acquire mutex.

Definition at line 80 of file Primitive.hpp.

bool torc::physical::Primitive::operator==

(

const Primitive &

rhs

)

const [inline]

Equality operator.

This function deems elements equal if their names are identical.

Parameters:

rhs

The element to compare against.

Returns:

true if both element names are identical, or false otherwise.

Definition at line 153 of file Primitive.hpp.

ElementSharedPtrConstIterator torc::physical::Primitive::elementsBegin

(

void

)

const [inline]

Returns the begin constant iterator for elements.

Definition at line 161 of file Primitive.hpp.

ElementSharedPtrConstIterator torc::physical::Primitive::elementsEnd

(

void

)

const [inline]

Returns the end constant iterator for elements.

Definition at line 163 of file Primitive.hpp.

ElementSharedPtrIterator torc::physical::Primitive::elementsBegin

(

void

)

[inline]

Returns the begin non-constant iterator for elements.

Definition at line 165 of file Primitive.hpp.

ElementSharedPtrIterator torc::physical::Primitive::elementsEnd

(

void

)

[inline]

Returns the end non-constant iterator for elements.

Definition at line 167 of file Primitive.hpp.

---

Friends And Related Function Documentation

friend class RcFactory [friend]

The Factory class has direct access to our internals.

Definition at line 37 of file Primitive.hpp.

---

Member Data Documentation

ElementSharedPtrVector torc::physical::Primitive::mElements [protected]

Vector of element shared pointers.

Definition at line 45 of file Primitive.hpp.

---

The documentation for this class was generated from the following file:

• torc/packer/Primitive.hpp
