torc::bitstream::Bitstream Class Reference

Xilinx bitstream base class. More...

#include <Bitstream.hpp>

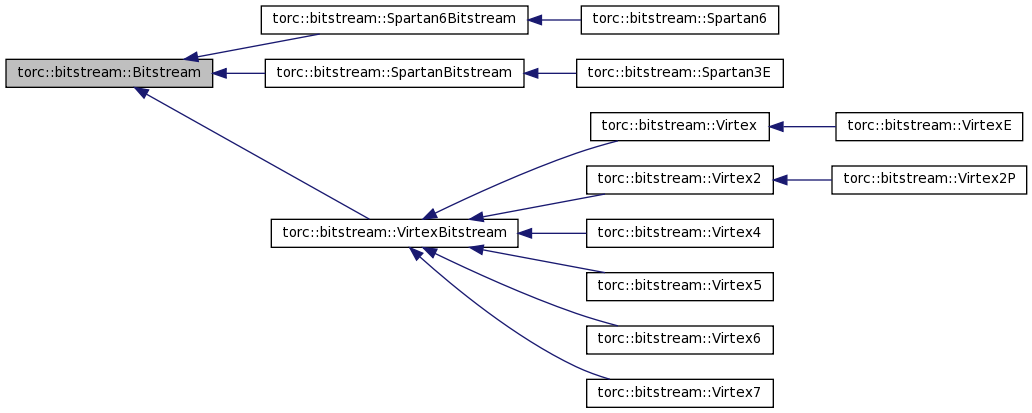

Inheritance diagram for torc::bitstream::Bitstream:

[legend]

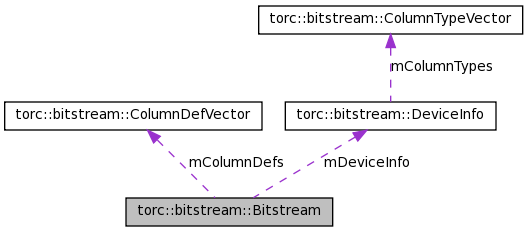

Collaboration diagram for torc::bitstream::Bitstream:

[legend]

List of all members.

Public Types
typedef std::string	string
typedef boost::uint8_t	uint8_t
	Imported type name.
typedef boost::uint16_t	uint16_t
	Imported type name.
typedef boost::uint32_t	uint32_t
	Imported type name.
typedef torc::common::EDevice	EDevice
	Imported type name.
typedef std::map< std::string, uint32_t >	TileTypeNameToColumnType
	Mapping from tile type names to column types.
typedef std::map< uint16_t, uint32_t >	TileTypeIndexToColumnType
	Mapping from tile indexes to column types.
Public Member Functions
void	write (std::ostream &inStream, uint8_t inVal)
	Write a uint8_t to the stream.
void	write (std::ostream &inStream, uint16_t inVal)
	Write a uint16_t to the stream.
void	write (std::ostream &inStream, uint32_t inVal)
	Write a uint32_t to the stream.
void	writeHeaderString (std::ostream &inStream, const string &inString)
	Write a Xilinx-style header string to the stream.
void	cleanDateAndTime (void)
	Clean up the header date and time by replacing embedded spaces with zeros.
virtual void	initializeDeviceInfo (const std::string &inDeviceName)
	Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.
virtual void	initializeFrameMaps (void)
	Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.
virtual void	writeDeviceInfo (std::ostream &inStream, const std::string &inDeviceName)
	Output static device information to a stream.
void	setDeviceInfo (const DeviceInfo &rhs)
	Assign static device information for the current bitstream.
void	setDevice (const std::string &inDeviceName)
	Assign the device enumeration constant for the given device name.
	Bitstream (void)
	Basic constructor.
virtual	~Bitstream (void)
	Virtual destructor.
virtual void	read (std::istream &inStream, bool inCleanDateAndTime=true)
	Read the bitstream header and packets from a stream.
virtual void	readPackets (std::istream &inStream)
	Read the bitstream packets.
virtual void	readHeader (std::istream &inStream)
	Read the bitstream header.
virtual void	write (std::ostream &inStream)
	Write the bitstream header and packets to a stream.
virtual void	preflightPackets (void)
	Preflight the packets.
virtual void	updatePacketLength (void)
	Update the header packet length.
virtual void	writePackets (std::ostream &inStream)
	Write the bitstream packets.
virtual void	writeHeader (std::ostream &inStream)
	Write the bitstream header to the stream.
void	setDesignName (const string &inDesignName)
	Set the design name.
void	setDeviceName (const string &inDeviceName)
	Set the device name.
void	setDesignDate (const string &inDesignDate)
	Set the design date.
void	setDesignTime (const string &inDesignTime)
	Set the design time.
const string &	getDesignName (void) const
	Return the design name.
const string &	getDeviceName (void) const
	Return the device name.
const string &	getDesignDate (void) const
	Return the design date.
const string &	getDesignTime (void) const
	Return the design time.
uint32_t	getBitstreamByteLength (void) const
	Return the bitstream packet length in bytes.
uint32_t	getHeaderByteLength (void) const
	Return the bitstream header length in bytes.
virtual uint32_t	getFrameLength (void) const
	Return the frame length for the current device.
Static Public Member Functions
static bool	expect (std::istream &inStream, uint8_t inExpected)
	Look for the expected uint8_t in the stream and return true if it matches.
static bool	expect (std::istream &inStream, uint16_t inExpected)
	Look for the expected uint16_t in the stream and return true if it matches.
static bool	expect (std::istream &inStream, uint32_t inExpected)
	Look for the expected uint32_t in the stream and return true if it matches.
static void	readHeaderString (std::istream &inStream, string &outString)
	Read and return a bitstream header string.
static bool	readHeader (std::istream &inStream, string &outDesignName, string &outDeviceName, string &outDesignDate, string &outDesignTime, uint32_t &outBitstreamLength, uint32_t &outHeaderLength)
	Read a bitstream header, and return its fields.
static void	writeSubfieldSettings (std::ostream &inStream, uint32_t inWord, const Subfield *inSubfields)
	Insert 32 bit subfield settings into an output stream.
static void	writeSubfieldSettings (std::ostream &inStream, uint16_t inWord, const Subfield *inSubfields)
	Insert 16 bit subfield settings into an output stream.
Public Attributes
EDevice	mDevice
	Bitstream device enumeration.
string	mDesignName
	Header design name.
string	mDeviceName
	Header device name.
string	mDesignDate
	Header design date.
string	mDesignTime
	Header design time.
uint32_t	mBitstreamByteLength
	Bitstream packet length in bytes.
uint32_t	mHeaderByteLength
	Header length in bytes.
ColumnDefVector	mColumnDefs
	Column type widths.
TileTypeNameToColumnType	mTileTypeNameToColumnType
TileTypeIndexToColumnType	mTileTypeIndexToColumnType
DeviceInfo	mDeviceInfo
	Device information.
Friends
class	torc::bitstream::bitstream::BitstreamUnitTest
std::ostream &	operator<< (std::ostream &os, const Bitstream &rhs)
	Insert the bitstream header into an output stream.
Classes
struct	Subfield

---

Detailed Description

Xilinx bitstream base class.

Definition at line 40 of file Bitstream.hpp.

---

Member Typedef Documentation

typedef std::string torc::bitstream::Bitstream::string

Todo:

Bitstream access needs to be changed from public back to protected.

Imported type name.

Definition at line 45 of file Bitstream.hpp.

typedef boost::uint8_t torc::bitstream::Bitstream::uint8_t

Imported type name.

Definition at line 46 of file Bitstream.hpp.

typedef boost::uint16_t torc::bitstream::Bitstream::uint16_t

Imported type name.

Reimplemented in torc::bitstream::Spartan6, and torc::bitstream::Spartan6Bitstream.

Definition at line 47 of file Bitstream.hpp.

typedef boost::uint32_t torc::bitstream::Bitstream::uint32_t

Imported type name.

Reimplemented in torc::bitstream::Spartan3E, torc::bitstream::Spartan6, torc::bitstream::Spartan6Bitstream, torc::bitstream::SpartanBitstream, torc::bitstream::Virtex, torc::bitstream::Virtex2, torc::bitstream::Virtex4, torc::bitstream::Virtex5, torc::bitstream::Virtex6, torc::bitstream::Virtex7, and torc::bitstream::VirtexBitstream.

Definition at line 48 of file Bitstream.hpp.

typedef torc::common::EDevice torc::bitstream::Bitstream::EDevice

Imported type name.

Definition at line 49 of file Bitstream.hpp.

typedef std::map<std::string, uint32_t> torc::bitstream::Bitstream::TileTypeNameToColumnType

Mapping from tile type names to column types.

Definition at line 236 of file Bitstream.hpp.

typedef std::map<uint16_t, uint32_t> torc::bitstream::Bitstream::TileTypeIndexToColumnType

Mapping from tile indexes to column types.

Definition at line 239 of file Bitstream.hpp.

---

Constructor & Destructor Documentation

torc::bitstream::Bitstream::Bitstream

(

void

)

[inline]

Basic constructor.

Definition at line 246 of file Bitstream.hpp.

virtual torc::bitstream::Bitstream::~Bitstream

(

void

)

[inline, virtual]

Virtual destructor.

Definition at line 248 of file Bitstream.hpp.

---

Member Function Documentation

void torc::bitstream::Bitstream::write	(	std::ostream &	inStream,
		uint8_t	inVal
	)			[inline]

Write a uint8_t to the stream.

Definition at line 52 of file Bitstream.hpp.

void torc::bitstream::Bitstream::write	(	std::ostream &	inStream,
		uint16_t	inVal
	)			[inline]

Write a uint16_t to the stream.

Definition at line 57 of file Bitstream.hpp.

void torc::bitstream::Bitstream::write	(	std::ostream &	inStream,
		uint32_t	inVal
	)			[inline]

Write a uint32_t to the stream.

Definition at line 62 of file Bitstream.hpp.

void torc::bitstream::Bitstream::writeHeaderString	(	std::ostream &	inStream,
		const string &	inString
	)			[inline]

Write a Xilinx-style header string to the stream.

Definition at line 67 of file Bitstream.hpp.

static bool torc::bitstream::Bitstream::expect	(	std::istream &	inStream,
		uint8_t	inExpected
	)			[inline, static]

Look for the expected uint8_t in the stream and return true if it matches.

Definition at line 74 of file Bitstream.hpp.

static bool torc::bitstream::Bitstream::expect	(	std::istream &	inStream,
		uint16_t	inExpected
	)			[inline, static]

Look for the expected uint16_t in the stream and return true if it matches.

Definition at line 82 of file Bitstream.hpp.

static bool torc::bitstream::Bitstream::expect	(	std::istream &	inStream,
		uint32_t	inExpected
	)			[inline, static]

Look for the expected uint32_t in the stream and return true if it matches.

Definition at line 90 of file Bitstream.hpp.

static void torc::bitstream::Bitstream::readHeaderString	(	std::istream &	inStream,
		string &	outString
	)			[inline, static]

Read and return a bitstream header string.

Definition at line 109 of file Bitstream.hpp.

static bool torc::bitstream::Bitstream::readHeader	(	std::istream &	inStream,
		string &	outDesignName,
		string &	outDeviceName,
		string &	outDesignDate,
		string &	outDesignTime,
		uint32_t &	outBitstreamLength,
		uint32_t &	outHeaderLength
	)			[inline, static]

Read a bitstream header, and return its fields.

Definition at line 127 of file Bitstream.hpp.

void torc::bitstream::Bitstream::cleanDateAndTime

(

void

)

[inline]

Clean up the header date and time by replacing embedded spaces with zeros.

Definition at line 168 of file Bitstream.hpp.

void torc::bitstream::Bitstream::writeSubfieldSettings	(	std::ostream &	inStream,
		uint32_t	inWord,
		const Subfield *	inSubfields
	)			[static]

Insert 32 bit subfield settings into an output stream.

Definition at line 26 of file Bitstream.cpp.

void torc::bitstream::Bitstream::writeSubfieldSettings	(	std::ostream &	inStream,
		uint16_t	inWord,
		const Subfield *	inSubfields
	)			[static]

Insert 16 bit subfield settings into an output stream.

Definition at line 50 of file Bitstream.cpp.

virtual void torc::bitstream::Bitstream::initializeDeviceInfo

(

const std::string &

inDeviceName

)

[inline, virtual]

Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.

Todo:

This function should be made pure virtual.

Reimplemented in torc::bitstream::Spartan3E, torc::bitstream::Virtex, torc::bitstream::Virtex2, torc::bitstream::Virtex2P, torc::bitstream::Virtex4, torc::bitstream::Virtex5, torc::bitstream::Virtex6, torc::bitstream::Virtex7, and torc::bitstream::VirtexE.

Definition at line 199 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::initializeFrameMaps

(

void

)

[inline, virtual]

Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.

Reimplemented in torc::bitstream::Spartan3E, torc::bitstream::Virtex, torc::bitstream::Virtex2, torc::bitstream::Virtex4, torc::bitstream::Virtex5, torc::bitstream::Virtex6, and torc::bitstream::VirtexE.

Definition at line 202 of file Bitstream.hpp.

void torc::bitstream::Bitstream::writeDeviceInfo	(	std::ostream &	inStream,
		const std::string &	inDeviceName
	)			[virtual]

Output static device information to a stream.

This is used to generate the static column maps for bitstream frame mapping.

Definition at line 74 of file Bitstream.cpp.

void torc::bitstream::Bitstream::setDeviceInfo

(

const DeviceInfo &

rhs

)

[inline]

Assign static device information for the current bitstream.

Definition at line 208 of file Bitstream.hpp.

void torc::bitstream::Bitstream::setDevice

(

const std::string &

inDeviceName

)

[inline]

Assign the device enumeration constant for the given device name.

Definition at line 210 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::read	(	std::istream &	inStream,
		bool	inCleanDateAndTime = true
	)			[inline, virtual]

Read the bitstream header and packets from a stream.

Definition at line 251 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::readPackets

(

std::istream &

inStream

)

[inline, virtual]

Read the bitstream packets.

Reimplemented in torc::bitstream::Spartan6Bitstream, torc::bitstream::SpartanBitstream, and torc::bitstream::VirtexBitstream.

Definition at line 257 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::readHeader

(

std::istream &

inStream

)

[inline, virtual]

Read the bitstream header.

Definition at line 259 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::write

(

std::ostream &

inStream

)

[inline, virtual]

Write the bitstream header and packets to a stream.

Definition at line 265 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::preflightPackets

(

void

)

[inline, virtual]

Preflight the packets.

Reimplemented in torc::bitstream::Spartan6Bitstream, torc::bitstream::SpartanBitstream, and torc::bitstream::VirtexBitstream.

Definition at line 272 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::updatePacketLength

(

void

)

[inline, virtual]

Update the header packet length.

Reimplemented in torc::bitstream::Spartan6Bitstream, torc::bitstream::SpartanBitstream, and torc::bitstream::VirtexBitstream.

Definition at line 274 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::writePackets

(

std::ostream &

inStream

)

[inline, virtual]

Write the bitstream packets.

Reimplemented in torc::bitstream::Spartan6Bitstream, torc::bitstream::SpartanBitstream, and torc::bitstream::VirtexBitstream.

Definition at line 276 of file Bitstream.hpp.

virtual void torc::bitstream::Bitstream::writeHeader

(

std::ostream &

inStream

)

[inline, virtual]

Write the bitstream header to the stream.

Definition at line 278 of file Bitstream.hpp.

void torc::bitstream::Bitstream::setDesignName

(

const string &

inDesignName

)

[inline]

Set the design name.

Definition at line 308 of file Bitstream.hpp.

void torc::bitstream::Bitstream::setDeviceName

(

const string &

inDeviceName

)

[inline]

Set the device name.

Definition at line 310 of file Bitstream.hpp.

void torc::bitstream::Bitstream::setDesignDate

(

const string &

inDesignDate

)

[inline]

Set the design date.

Definition at line 312 of file Bitstream.hpp.

void torc::bitstream::Bitstream::setDesignTime

(

const string &

inDesignTime

)

[inline]

Set the design time.

Definition at line 314 of file Bitstream.hpp.

const string& torc::bitstream::Bitstream::getDesignName

(

void

)

const [inline]

Return the design name.

Definition at line 316 of file Bitstream.hpp.

const string& torc::bitstream::Bitstream::getDeviceName

(

void

)

const [inline]

Return the device name.

Definition at line 318 of file Bitstream.hpp.

const string& torc::bitstream::Bitstream::getDesignDate

(

void

)

const [inline]

Return the design date.

Definition at line 320 of file Bitstream.hpp.

const string& torc::bitstream::Bitstream::getDesignTime

(

void

)

const [inline]

Return the design time.

Definition at line 322 of file Bitstream.hpp.

uint32_t torc::bitstream::Bitstream::getBitstreamByteLength

(

void

)

const [inline]

Return the bitstream packet length in bytes.

The length includes all packet data, but does not include the bitstream header.

Definition at line 325 of file Bitstream.hpp.

uint32_t torc::bitstream::Bitstream::getHeaderByteLength

(

void

)

const [inline]

Return the bitstream header length in bytes.

Definition at line 327 of file Bitstream.hpp.

virtual uint32_t torc::bitstream::Bitstream::getFrameLength

(

void

)

const [inline, virtual]

Return the frame length for the current device.

Reimplemented in torc::bitstream::Spartan3E, torc::bitstream::Virtex, torc::bitstream::Virtex2, torc::bitstream::Virtex2P, torc::bitstream::Virtex4, torc::bitstream::Virtex5, torc::bitstream::Virtex6, torc::bitstream::Virtex7, and torc::bitstream::VirtexE.

Definition at line 329 of file Bitstream.hpp.

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const Bitstream &	rhs
	)			[friend]

Insert the bitstream header into an output stream.

Definition at line 49 of file OutputStreamHelpers.cpp.

---

Member Data Documentation

EDevice torc::bitstream::Bitstream::mDevice

Bitstream device enumeration.

Definition at line 215 of file Bitstream.hpp.

string torc::bitstream::Bitstream::mDesignName

Header design name.

Definition at line 217 of file Bitstream.hpp.

string torc::bitstream::Bitstream::mDeviceName

Header device name.

Definition at line 219 of file Bitstream.hpp.

string torc::bitstream::Bitstream::mDesignDate

Header design date.

Definition at line 221 of file Bitstream.hpp.

string torc::bitstream::Bitstream::mDesignTime

Header design time.

Definition at line 223 of file Bitstream.hpp.

uint32_t torc::bitstream::Bitstream::mBitstreamByteLength

Bitstream packet length in bytes.

This is the length in bytes of all the bitstream packets, without the bitstream header.

Definition at line 227 of file Bitstream.hpp.

uint32_t torc::bitstream::Bitstream::mHeaderByteLength

Header length in bytes.

This is the length of the header itself, as opposed to mBitstreamByteLength, which is the length of bitstream reported by the header.

Definition at line 231 of file Bitstream.hpp.

ColumnDefVector torc::bitstream::Bitstream::mColumnDefs

Column type widths.

Definition at line 234 of file Bitstream.hpp.

DeviceInfo torc::bitstream::Bitstream::mDeviceInfo

Device information.

Definition at line 242 of file Bitstream.hpp.

---

The documentation for this class was generated from the following files:

• torc/bitstream/Bitstream.hpp
• torc/bitstream/Bitstream.cpp
