torc::bitstream::Virtex6 Class Reference

#include <Virtex6.hpp>

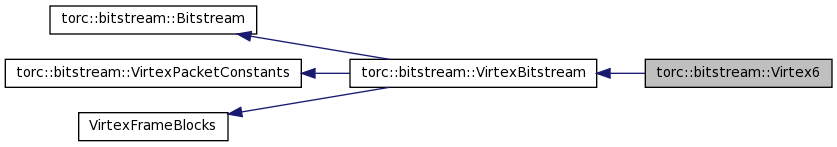

Inheritance diagram for torc::bitstream::Virtex6:

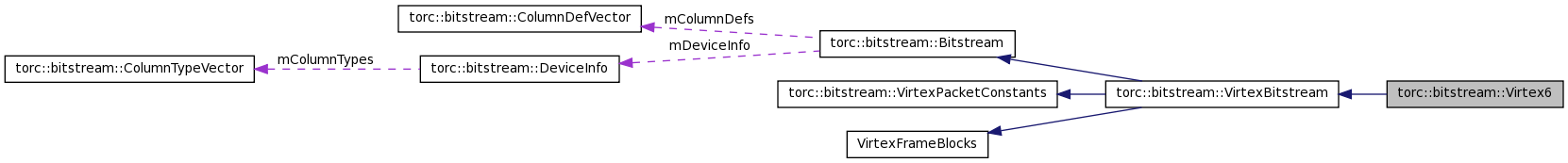

Collaboration diagram for torc::bitstream::Virtex6:

List of all members.

Public Types

enum ERegister {
  eRegisterCRC = 0, eRegisterFAR, eRegisterFDRI, eRegisterFDRO,
  eRegisterCMD, eRegisterCTL0, eRegisterMASK, eRegisterSTAT,
  eRegisterLOUT, eRegisterCOR0, eRegisterMFWR, eRegisterCBC,
  eRegisterIDCODE, eRegisterAXSS, eRegisterCOR1, eRegisterCSOB,
  eRegisterWBSTAR, eRegisterTIMER, eRegisterBOOTSTS = 22, eRegisterCTL1 = 24,
  eRegisterDWC = 26, eRegisterCount
}

Configuration register enumeration. More...

enum ECommand {
  eCommandNULL = 0, eCommandWCFG, eCommandMFW, eCommandDGHIGH,
  eCommandLFRM = eCommandDGHIGH, eCommandRCFG, eCommandSTART, eCommandRCAP,
  eCommandRCRC, eCommandAGHIGH, eCommandSWITCH, eCommandGRESTORE,
  eCommandSHUTDOWN, eCommandGCAPTURE, eCommandDESYNCH, eCommandReserved,
  eCommandIPROG, eCommandCRCC, eCommandLTIMER, eCommandCount
}

Configuration command enumeration for eRegisterCMD. More...

enum EFar {
  eFarMaskBlockType = 0x00e00000, eFarShiftBlockType = 21, eFarMaskTopBottom = 0x00100000, eFarShiftTopBottom = 20,
  eFarMaskRow = 0x000f8000, eFarShiftRow = 15, eFarMaskMajor = 0x00007f80, eFarShiftMajor = 7,
  eFarMaskMinor = 0x0000007f, eFarShiftMinor = 0
}

Frame Address Register subfields. More...

enum EFarTopBottom { eFarTop = 0, eFarBottom = 1 }

Frame Address Register top and bottom constants. More...

enum EFarBlockType {
  eFarBlockType0 = 0, eFarBlockType1, eFarBlockType2, eFarBlockType3,
  eFarBlockType4, eFarBlockType5, eFarBlockType6, eFarBlockType7,
  eFarBlockTypeCount
}

Frame Address Register block type constants. More...

enum { eStartAddr = 0x03ffffff, eTimerValue = 0x00ffffff }

Assorted constants. More...

enum EColumnType {
  eColumnTypeEmpty = 0, eColumnTypeBram, eColumnTypeClb, eColumnTypeClock,
  eColumnTypeDsp, eColumnTypeGtx, eColumnTypeIob, eColumnTypeCount
}

Major column types. More...

enum { eFrameLength = 81 }

Frame length. More...

Public Member Functions

Virtex6 (void)

Basic constructor.

virtual void initializeDeviceInfo (const std::string &inDeviceName)

Initialize the device information.

virtual void initializeFrameMaps (void)

Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.

void initializeFullFrameBlocks (void)

Loads full bitstream frames into block data structure.

VirtexFrameBlocks getBitstreamFrames (uint32_t inBlockCount, uint32_t inBitCol)

Returns frames for queried bitstream co-ordinates.

VirtexFrameBlocks getXdlFrames (uint32_t inBlockCount, uint32_t inXdlCol)

Returns frames for queried xdl co-ordinates.

virtual uint32_t getFrameLength (void) const

Return the frame length for the current device.

Static Public Member Functions

static uint32_t makeSubfield (ERegister inRegister, const std::string &inSubfield, const std::string &inSetting)

Return the masked value for a subfield of the specified register.

Protected Types

typedef boost::uint32_t uint32_t

Imported type name.

typedef std::map< uint32_t,
Virtex6::FrameAddress > FrameIndexToAddress

Map from frame index to frame address.

typedef std::map
< Virtex6::FrameAddress,
uint32_t > FrameAddressToIndex

Map from frame address to frame index.

typedef std::vector< uint32_t > IndexVector

Array of vectors to store frame indexes of each block type.

Protected Member Functions

void setRowCounts (void)

Set the number of top and bottom bitstream rows.

Protected Attributes

uint32_t mTopRowCount

The number of top bitstream rows.

uint32_t mBottomRowCount

The number of bottom bitstream rows.

FrameIndexToAddress mFrameIndexToAddress

Map of frame indexes to frame addresses.

FrameAddressToIndex mFrameAddressToIndex

Map of frame addressee to frame indexes.

IndexVector mBitColumnIndexes [Virtex6::eFarBlockTypeCount]

Vector to store frame indexes of XDL columns.

IndexVector mXdlColumnIndexes [Virtex6::eFarBlockTypeCount]

Vector to store frame indexes of Bitstream columns.

uint32_t mBlockFrameIndexBounds [Virtex6::eFarBlockTypeCount]

Array to hold frame index boundaries for blocks.

std::map< uint32_t, uint32_t > mXdlIndexToBitIndex

Map of xdl columns to bit columns.

Static Protected Attributes

static const char * sPacketTypeName [ePacketTypeCount]

Packet type names.

static const char * sOpcodeName [eOpcodeCount]

Packet opcode names.

static const char * sRegisterName [eRegisterCount]

Configuration register names.

static const char * sCommandName [eCommandCount]

Configuration command names.

static const Subfield sCOR0 []

Configuration Options Register 0 (COR) subfields.

static const Subfield sCOR1 []

Configuration Options Register 1 (COR) subfields.

static const Subfield sSTAT []

Status Register (STAT) subfields.

static const Subfield sCTL0 []

Control Register 0 (CTL) subfields.

static const Subfield sCTL1 []

Control Register 1 (CTL) subfields.

static const Subfield sMASK0 []

Control Mask Register (MASK) subfields.

static const Subfield sWBSTAR []

Warm Boot Start Address Register (WBSTAR) subfields.

static const Subfield sTIMER []

Watchdog Timer Register (TIMER) subfields.

static const Subfield sBOOTSTS []

Boot History Status Register (BOOTSTS) subfields.

Friends

class torc::bitstream::bitstream::Virtex6UnitTest

class torc::bitstream::bitstream::Virtex6FarUnitTest

void testVirtex6Device (const std::string &inDeviceName, const boost::filesystem::path &inWorkingPath)

void testVirtex6FullMapping (const boost::filesystem::path &inWorkingPath)

void testVirtex6PartialMapping (const boost::filesystem::path &inWorkingPath)

std::ostream & operator<< (std::ostream &os, const Virtex6 &rhs)

Insert the bitstream header into an output stream.

Classes

class FrameAddress

Detailed Description

Virtex6 bitstream.

Definition at line 41 of file Virtex6.hpp.

Member Typedef Documentation

typedef boost::uint32_t torc::bitstream::Virtex6::uint32_t [protected]

Imported type name.

Reimplemented from torc::bitstream::VirtexBitstream.

Definition at line 51 of file Virtex6.hpp.

typedef std::map<uint32_t, Virtex6::FrameAddress> torc::bitstream::Virtex6::FrameIndexToAddress [protected]

Map from frame index to frame address.

Definition at line 243 of file Virtex6.hpp.

typedef std::map<Virtex6::FrameAddress, uint32_t> torc::bitstream::Virtex6::FrameAddressToIndex [protected]

Map from frame address to frame index.

Definition at line 245 of file Virtex6.hpp.

typedef std::vector<uint32_t> torc::bitstream::Virtex6::IndexVector [protected]

Array of vectors to store frame indexes of each block type.

Definition at line 247 of file Virtex6.hpp.

Member Enumeration Documentation

enum torc::bitstream::Virtex6::ERegister

Configuration register enumeration.

See also:: Type 1 Packet Registers: UG360, v3.2, November 1, 2010, Table 6-26.

Definition at line 56 of file Virtex6.hpp.

enum torc::bitstream::Virtex6::ECommand

Configuration command enumeration for eRegisterCMD.

See also:: Command Register Codes: UG360, v3.2, November 1, 2010, Table 6-27.

Definition at line 64 of file Virtex6.hpp.

enum torc::bitstream::Virtex6::EFar

Frame Address Register subfields.

See also:: Frame Address Register Description: UG360, v3.2, November 1, 2010, Table 6-31.

Definition at line 72 of file Virtex6.hpp.

enum torc::bitstream::Virtex6::EFarTopBottom

Frame Address Register top and bottom constants.

See also:: Frame Address Register Description: UG360, v3.2, November 1, 2010, Table 6-31.

Definition at line 82 of file Virtex6.hpp.

enum torc::bitstream::Virtex6::EFarBlockType

Frame Address Register block type constants.

Definition at line 85 of file Virtex6.hpp.

anonymous enum

Assorted constants.

See also:: WBSTAR Register Description: UG360, v3.2, November 1, 2010, Table 6-39.

Definition at line 90 of file Virtex6.hpp.

enum torc::bitstream::Virtex6::EColumnType

Major column types.

These are defined and used for internal purposes only, and are not derived from any Xilinx documentation.

Definition at line 97 of file Virtex6.hpp.

anonymous enum

Frame length.

Constant frame length of 81 32-bit words for the entire Virtex6 family.

See also:: Virtex-6 FPGA Frame Count, Frame Length, and Bitstream Size: UG360, v.3.2, November 1, 2010, Table 6-22.

Definition at line 103 of file Virtex6.hpp.

Constructor & Destructor Documentation

torc::bitstream::Virtex6::Virtex6 ( void ) [inline]

Basic constructor.

Definition at line 144 of file Virtex6.hpp.

Member Function Documentation

void torc::bitstream::Virtex6::setRowCounts ( void ) [protected]

Set the number of top and bottom bitstream rows.

Definition at line 548 of file Virtex6.cpp.

uint32_t torc::bitstream::Virtex6::makeSubfield	(	ERegister	inRegister,
		const std::string &	inSubfield,
		const std::string &	inSetting
	)			`[static]`

Return the masked value for a subfield of the specified register.

Definition at line 364 of file Virtex6.cpp.

void torc::bitstream::Virtex6::initializeDeviceInfo ( const std::string & inDeviceName ) [virtual]

Initialize the device information.

Reimplemented from torc::bitstream::Bitstream.

Definition at line 421 of file Virtex6.cpp.

void torc::bitstream::Virtex6::initializeFrameMaps ( void ) [virtual]

Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.

Reimplemented from torc::bitstream::Bitstream.

Definition at line 586 of file Virtex6.cpp.

void torc::bitstream::Virtex6::initializeFullFrameBlocks ( void )

Loads full bitstream frames into block data structure.

Definition at line 674 of file Virtex6.cpp.

VirtexFrameBlocks torc::bitstream::Virtex6::getBitstreamFrames	(	uint32_t	inBlockCount,
		uint32_t	inBitCol
	)

Returns frames for queried bitstream co-ordinates.

Definition at line 720 of file Virtex6.cpp.

VirtexFrameBlocks torc::bitstream::Virtex6::getXdlFrames	(	uint32_t	inBlockCount,
		uint32_t	inXdlCol
	)

Returns frames for queried xdl co-ordinates.

Definition at line 743 of file Virtex6.cpp.

virtual uint32_t torc::bitstream::Virtex6::getFrameLength ( void ) const [inline, virtual]

Return the frame length for the current device.

Reimplemented from torc::bitstream::Bitstream.

Definition at line 187 of file Virtex6.hpp.

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const Virtex6 &	rhs
	)			`[friend]`

Insert the bitstream header into an output stream.

Definition at line 948 of file OutputStreamHelpers.cpp.

Member Data Documentation

const char * torc::bitstream::Virtex6::sPacketTypeName [static, protected]

Initial value:

 {
        "[UNKNOWN TYPE 0]", "TYPE1", "TYPE2", "[UNKNOWN TYPE 3]", "[UNKNOWN TYPE 4]",
        "[UNKNOWN TYPE 5]", "[UNKNOWN TYPE 6]", "[UNKNOWN TYPE 7]"
    }

Packet type names.

Definition at line 109 of file Virtex6.hpp.

const char * torc::bitstream::Virtex6::sOpcodeName [static, protected]

Initial value:

 {
        "NOP", "READ", "WRITE", "RESERVED"
    }

Packet opcode names.

Definition at line 111 of file Virtex6.hpp.

const char * torc::bitstream::Virtex6::sRegisterName [static, protected]

Initial value:

 {
        "CRC", "FAR", "FDRI", "FDRO", "CMD", "CTL0", "MASK", "STAT", "LOUT", "COR0", "MFWR", "CBC",
        "IDCODE", "AXSS", "COR1", "CSOB", "WBSTAR", "TIMER", "[UNKNOWN REG 18]",
        "[UNKNOWN REG 19]", "[UNKNOWN REG 20]", "[UNKNOWN REG 21]", "BOOTSTS", "[UNKNOWN REG 23]",
        "CTL1", "[UNKNOWN REG 25]", "DWC"
    }

Configuration register names.

Definition at line 113 of file Virtex6.hpp.

const char * torc::bitstream::Virtex6::sCommandName [static, protected]

Initial value:

 {
        "NULL", "WCFG", "MFW", "DGHIGH/LFRM", "RCFG", "START", "RCAP", "RCRC", "AGHIGH", "SWITCH",
        "GRESTORE", "SHUTDOWN", "GCAPTURE", "DESYNCH", "Reserved", "IPROG", "CRCC",
        "LTIMER"
    }

Configuration command names.

Definition at line 115 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sCOR0 [static, protected]

Configuration Options Register 0 (COR) subfields.

See also:: Control Register 0 (CTL0): UG360, v3.2, November 1, 2010, Table 6-35.

Definition at line 117 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sCOR1 [static, protected]

Initial value:

 {
        {0x00000003,  0, "BPI_page_size", "BPI_PAGE_SIZE", 0,


            VALUES{"1", "4", "8", "Reserved", 0}},
        {0x0000000C,  2, "BPI_1st_read_cycle", "BPI_1ST_READ_CYCLES", 0,


            VALUES{"1", "4", "8", "Reserved", 0}},
        {0x00000100,  8, "ContinuousReadbackCRC", "RBCRC_EN", 0,


            VALUES{"Disabled", "Enabled", 0}},
        {0x00000200,  9, "InitAsCRCErrorPin", "RBCRC_NO_PIN", 0,


            VALUES{"Disabled", "Enabled", 0}},
        {0x00018000, 15, "ActionReadbackCRC", "RBCRC_ACTION", 0,


            VALUES{"Continue", "Halt", "CorrectAndHalt", "CorrectAndContinue", 0}},
        {0x00020000, 17, "PersistDeassertAtDesynch", "PERSIST_DEASSERT_AT_DESYNCH", 0,


            VALUES{"Disabled", "Enabled", 0}},
        {0, 0, 0, 0, 0, 0}
    }

Configuration Options Register 1 (COR) subfields.

See also:: Configuration Options Register 1 (COR1): UG360, v3.2, November 1, 2010, Table 6-37.

Definition at line 119 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sSTAT [static, protected]

Status Register (STAT) subfields.

See also:: Status Register Description: UG360, v3.2, November 1, 2010, Table 6-33.

Definition at line 121 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sCTL0 [static, protected]

Control Register 0 (CTL) subfields.

See also:: Control Register 0 (CTL0): UG360, v3.2, November 1, 2010, Table 6-28.

Definition at line 123 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sCTL1 [static, protected]

Initial value:

 {
        {0, 0, 0, 0, 0, 0}
    }

Control Register 1 (CTL) subfields.

See also:: Control Register 0 (CTL0): UG360, v3.2, November 1, 2010, Table 6-30.

Definition at line 125 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sMASK0 [static, protected]

Initial value:

 {
        {0x00000001,  0, "GTS_USER_B", "GTS_USER_B", 0, VALUES{"Protected", "Writable", 0}},
        {0x00000008,  3, "Persist", "PERSIST", 0,  VALUES{"Protected", "Writable", 0}},
        {0x00000030,  4, "Security", "SBITS", 0,
            VALUES{"Protected", "[UNKNOWN 1]", "[UNKNOWN 2]", "Writable", 0}},
        {0x00000040,  6, "Encrypt", "DEC", 0,  VALUES{"Protected", "Writable", 0}},
        {0x00000080,  7, "FARSRC", "FARSRC", 0,  VALUES{"Protected", "Writable", 0}},
        {0x00000100,  8, "GLUTMASK", "GLUTMASK", 0,  VALUES{"Protected", "Writable", 0}},
        {0x00001000, 12, "OverTempPowerDown", "OverTempPowerDown", 0, VALUES{"Protected",
            "Writable", 0}},
        {0x40000000, 30, "ICAP_sel", "ICAP_SEL", 0, VALUES{"Protected", "Writable", 0}},
        {0x80000000, 31, "EFUSE_key", "EFUSE_KEY", 0, VALUES{"Protected", "Writable", 0}},
        {0, 0, 0, 0, 0, 0}
    }

Control Mask Register (MASK) subfields.

See also:: Control Register 0 (CTL0): UG360, v3.2, November 1, 2010, Table 6-28.

Definition at line 127 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sWBSTAR [static, protected]

Initial value:

 {
        {0x18000000, 27, "NextRevisionSelect", "RS[1:0]", 0,

            VALUES{"00", "01", "10", "11", 0}},
        {0x04000000, 26, "RevisionSelectTristate", "RS_TS_B", 0,

            VALUES{"Disabled", "Enabled", 0}},
        {0, 0, 0, 0, 0, 0}
    }

Warm Boot Start Address Register (WBSTAR) subfields.

See also:: WBSTAR Register Description: UG360, v3.2, November 1, 2010, Table 6-39.

Definition at line 129 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sTIMER [static, protected]

Initial value:

 {
        {0x01000000, 24, "TimerForConfig", "TIMER_CFG_MON", 0,

            VALUES{"Disabled", "Enabled", 0}},
        {0x02000000, 25, "TimerForUser", "TIMER_USR_MON", 0,

            VALUES{"Disabled", "Enabled", 0}},
        {0, 0, 0, 0, 0, 0}
    }

Watchdog Timer Register (TIMER) subfields.

See also:: TIMER Register Description: UG360, v3.2, November 1, 2010, Table 6-41.

Definition at line 131 of file Virtex6.hpp.

const Bitstream::Subfield torc::bitstream::Virtex6::sBOOTSTS [static, protected]

Boot History Status Register (BOOTSTS) subfields.

See also:: BOOTSTS Register Description: UG360, v3.2, November 1, 2010, Table 6-43.

Definition at line 133 of file Virtex6.hpp.

uint32_t torc::bitstream::Virtex6::mTopRowCount [protected]

The number of top bitstream rows.

Definition at line 135 of file Virtex6.hpp.

uint32_t torc::bitstream::Virtex6::mBottomRowCount [protected]

The number of bottom bitstream rows.

Definition at line 137 of file Virtex6.hpp.

FrameIndexToAddress torc::bitstream::Virtex6::mFrameIndexToAddress [protected]

Map of frame indexes to frame addresses.

Definition at line 251 of file Virtex6.hpp.

FrameAddressToIndex torc::bitstream::Virtex6::mFrameAddressToIndex [protected]

Map of frame addressee to frame indexes.

Definition at line 253 of file Virtex6.hpp.

IndexVector torc::bitstream::Virtex6::mBitColumnIndexes[Virtex6::eFarBlockTypeCount] [protected]

Vector to store frame indexes of XDL columns.

Definition at line 255 of file Virtex6.hpp.

IndexVector torc::bitstream::Virtex6::mXdlColumnIndexes[Virtex6::eFarBlockTypeCount] [protected]

Vector to store frame indexes of Bitstream columns.

Definition at line 257 of file Virtex6.hpp.

uint32_t torc::bitstream::Virtex6::mBlockFrameIndexBounds[Virtex6::eFarBlockTypeCount] [protected]

Array to hold frame index boundaries for blocks.

Definition at line 259 of file Virtex6.hpp.

std::map<uint32_t, uint32_t> torc::bitstream::Virtex6::mXdlIndexToBitIndex [protected]

Map of xdl columns to bit columns.

Definition at line 261 of file Virtex6.hpp.

The documentation for this class was generated from the following files:

torc/bitstream/Virtex6.hpp
torc/bitstream/Virtex6.cpp


Public Types
enum	ERegister { eRegisterCRC = 0, eRegisterFAR, eRegisterFDRI, eRegisterFDRO, eRegisterCMD, eRegisterCTL0, eRegisterMASK, eRegisterSTAT, eRegisterLOUT, eRegisterCOR0, eRegisterMFWR, eRegisterCBC, eRegisterIDCODE, eRegisterAXSS, eRegisterCOR1, eRegisterCSOB, eRegisterWBSTAR, eRegisterTIMER, eRegisterBOOTSTS = 22, eRegisterCTL1 = 24, eRegisterDWC = 26, eRegisterCount }
	Configuration register enumeration. More...
enum	ECommand { eCommandNULL = 0, eCommandWCFG, eCommandMFW, eCommandDGHIGH, eCommandLFRM = eCommandDGHIGH, eCommandRCFG, eCommandSTART, eCommandRCAP, eCommandRCRC, eCommandAGHIGH, eCommandSWITCH, eCommandGRESTORE, eCommandSHUTDOWN, eCommandGCAPTURE, eCommandDESYNCH, eCommandReserved, eCommandIPROG, eCommandCRCC, eCommandLTIMER, eCommandCount }
	Configuration command enumeration for eRegisterCMD. More...
enum	EFar { eFarMaskBlockType = 0x00e00000, eFarShiftBlockType = 21, eFarMaskTopBottom = 0x00100000, eFarShiftTopBottom = 20, eFarMaskRow = 0x000f8000, eFarShiftRow = 15, eFarMaskMajor = 0x00007f80, eFarShiftMajor = 7, eFarMaskMinor = 0x0000007f, eFarShiftMinor = 0 }
	Frame Address Register subfields. More...
enum	EFarTopBottom { eFarTop = 0, eFarBottom = 1 }
	Frame Address Register top and bottom constants. More...
enum	EFarBlockType { eFarBlockType0 = 0, eFarBlockType1, eFarBlockType2, eFarBlockType3, eFarBlockType4, eFarBlockType5, eFarBlockType6, eFarBlockType7, eFarBlockTypeCount }
	Frame Address Register block type constants. More...
enum	{ eStartAddr = 0x03ffffff, eTimerValue = 0x00ffffff }
	Assorted constants. More...
enum	EColumnType { eColumnTypeEmpty = 0, eColumnTypeBram, eColumnTypeClb, eColumnTypeClock, eColumnTypeDsp, eColumnTypeGtx, eColumnTypeIob, eColumnTypeCount }
	Major column types. More...
enum	{ eFrameLength = 81 }
	Frame length. More...
Public Member Functions
	Virtex6 (void)
	Basic constructor.
virtual void	initializeDeviceInfo (const std::string &inDeviceName)
	Initialize the device information.
virtual void	initializeFrameMaps (void)
	Initialize the maps between frame indexes and frame addresses. This is generally only useful for internal purposes.
void	initializeFullFrameBlocks (void)
	Loads full bitstream frames into block data structure.
VirtexFrameBlocks	getBitstreamFrames (uint32_t inBlockCount, uint32_t inBitCol)
	Returns frames for queried bitstream co-ordinates.
VirtexFrameBlocks	getXdlFrames (uint32_t inBlockCount, uint32_t inXdlCol)
	Returns frames for queried xdl co-ordinates.
virtual uint32_t	getFrameLength (void) const
	Return the frame length for the current device.
Static Public Member Functions
static uint32_t	makeSubfield (ERegister inRegister, const std::string &inSubfield, const std::string &inSetting)
	Return the masked value for a subfield of the specified register.
Protected Types
typedef boost::uint32_t	uint32_t
	Imported type name.
typedef std::map< uint32_t, Virtex6::FrameAddress >	FrameIndexToAddress
	Map from frame index to frame address.
typedef std::map < Virtex6::FrameAddress, uint32_t >	FrameAddressToIndex
	Map from frame address to frame index.
typedef std::vector< uint32_t >	IndexVector
	Array of vectors to store frame indexes of each block type.
Protected Member Functions
void	setRowCounts (void)
	Set the number of top and bottom bitstream rows.
Protected Attributes
uint32_t	mTopRowCount
	The number of top bitstream rows.
uint32_t	mBottomRowCount
	The number of bottom bitstream rows.
FrameIndexToAddress	mFrameIndexToAddress
	Map of frame indexes to frame addresses.
FrameAddressToIndex	mFrameAddressToIndex
	Map of frame addressee to frame indexes.
IndexVector	mBitColumnIndexes [Virtex6::eFarBlockTypeCount]
	Vector to store frame indexes of XDL columns.
IndexVector	mXdlColumnIndexes [Virtex6::eFarBlockTypeCount]
	Vector to store frame indexes of Bitstream columns.
uint32_t	mBlockFrameIndexBounds [Virtex6::eFarBlockTypeCount]
	Array to hold frame index boundaries for blocks.
std::map< uint32_t, uint32_t >	mXdlIndexToBitIndex
	Map of xdl columns to bit columns.
Static Protected Attributes
static const char *	sPacketTypeName [ePacketTypeCount]
	Packet type names.
static const char *	sOpcodeName [eOpcodeCount]
	Packet opcode names.
static const char *	sRegisterName [eRegisterCount]
	Configuration register names.
static const char *	sCommandName [eCommandCount]
	Configuration command names.
static const Subfield	sCOR0 []
	Configuration Options Register 0 (COR) subfields.
static const Subfield	sCOR1 []
	Configuration Options Register 1 (COR) subfields.
static const Subfield	sSTAT []
	Status Register (STAT) subfields.
static const Subfield	sCTL0 []
	Control Register 0 (CTL) subfields.
static const Subfield	sCTL1 []
	Control Register 1 (CTL) subfields.
static const Subfield	sMASK0 []
	Control Mask Register (MASK) subfields.
static const Subfield	sWBSTAR []
	Warm Boot Start Address Register (WBSTAR) subfields.
static const Subfield	sTIMER []
	Watchdog Timer Register (TIMER) subfields.
static const Subfield	sBOOTSTS []
	Boot History Status Register (BOOTSTS) subfields.
Friends
class	torc::bitstream::bitstream::Virtex6UnitTest
class	torc::bitstream::bitstream::Virtex6FarUnitTest
void	testVirtex6Device (const std::string &inDeviceName, const boost::filesystem::path &inWorkingPath)
void	testVirtex6FullMapping (const boost::filesystem::path &inWorkingPath)
void	testVirtex6PartialMapping (const boost::filesystem::path &inWorkingPath)
std::ostream &	operator<< (std::ostream &os, const Virtex6 &rhs)
	Insert the bitstream header into an output stream.
Classes
class	FrameAddress
