torc::router::PathFinderNetRouterHeuristic Class Reference

Provides net routing based on the Nillson graphsearch algorithm. More...

#include <PathFinderNetRouterHeuristic.hpp>

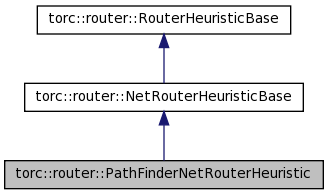

Inheritance diagram for torc::router::PathFinderNetRouterHeuristic:

[legend]

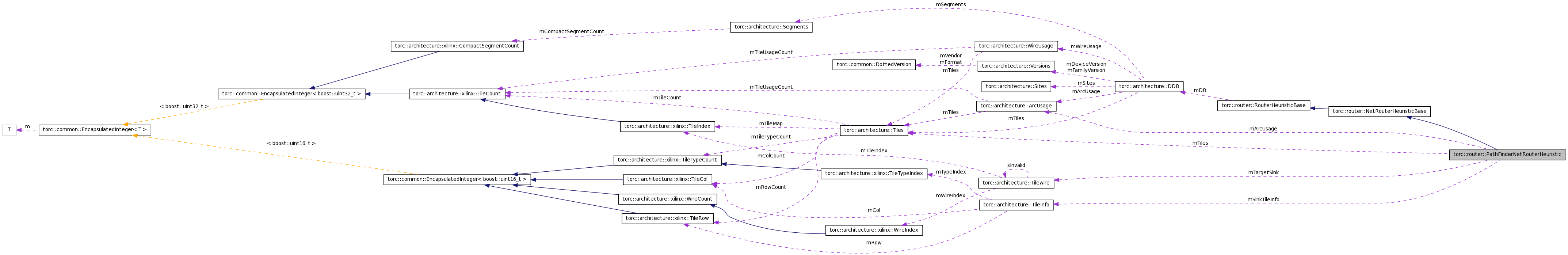

Collaboration diagram for torc::router::PathFinderNetRouterHeuristic:

[legend]

List of all members.

Public Member Functions
	PathFinderNetRouterHeuristic (DDB &inDB)
	Public Constructor.
	~PathFinderNetRouterHeuristic ()
	Destructor.
void	processParameters ()
	Do something with the parameters.
void	setSink (const Tilewire &inSink)
	Set the current routing target.
void	nodeCost (RouteNode &inNode)
	Calculate the node cost based on distance to the sink and path length.
void	nodeCostInitial (RouteNode &inNode)
virtual void	reorderSinks (const Tilewire &inSource, TilewireVector &inSinks)
	Reorder the Sinks based on this heuristic.
void	expandSegmentSinks (const Tilewire &inTilewire, ArcVector &outArcs)
	Heuristic handling of expansion of a node.
Protected Member Functions
virtual boost::int32_t	distanceToSink (const Tilewire &inTilewire)
virtual boost::int32_t	clkDistanceToSink (const Tilewire &inTilewire)
Protected Attributes
ArcUsage &	mArcUsage
	ArcUsage reference.
const Tiles &	mTiles
	Tiles reference.
Tilewire	mTargetSink
	Target sink tilewire.
const TileInfo *	mSinkTileInfo
	Target sink tile information.
boost::int32_t	mRow
	Target row coordinate.
boost::int32_t	mCol
	Target column coordinate.
TilewireVector	mSegmentBuf
	Segment tilewire buffer.
ArcVector	mArcsBuf
	Arc buffer.
PathFinderSharingMap *	mConflictMap
	PathFinder sharing information.
Private Types
typedef architecture::DDB	DDB
	Imported type names.
typedef architecture::Tiles	Tiles
typedef architecture::ArcUsage	ArcUsage
typedef architecture::WireUsage	WireUsage
typedef architecture::Tilewire	Tilewire
typedef architecture::TileInfo	TileInfo
typedef architecture::Arc	Arc
typedef architecture::TilewireVector	TilewireVector
typedef architecture::ArcVector	ArcVector
typedef architecture::xilinx::TileRow	TileRow
typedef architecture::xilinx::TileCol	TileCol
typedef boost::unordered_map < Tilewire, TilewireData >	PathFinderSharingMap

---

Detailed Description

Provides net routing based on the Nillson graphsearch algorithm.

The router can either return a vector of nodes or directly populate DDB usage.

Definition at line 44 of file PathFinderNetRouterHeuristic.hpp.

---

Member Typedef Documentation

typedef architecture::DDB torc::router::PathFinderNetRouterHeuristic::DDB [private]

Imported type names.

Reimplemented from torc::router::NetRouterHeuristicBase.

Definition at line 47 of file PathFinderNetRouterHeuristic.hpp.

---

Constructor & Destructor Documentation

torc::router::PathFinderNetRouterHeuristic::PathFinderNetRouterHeuristic

(

DDB &

inDB

)

[inline]

Public Constructor.

Definition at line 88 of file PathFinderNetRouterHeuristic.hpp.

torc::router::PathFinderNetRouterHeuristic::~PathFinderNetRouterHeuristic

(

)

[inline]

Destructor.

Definition at line 91 of file PathFinderNetRouterHeuristic.hpp.

---

Member Function Documentation

void torc::router::PathFinderNetRouterHeuristic::processParameters

(

)

[inline, virtual]

Do something with the parameters.

Reimplemented from torc::router::RouterHeuristicBase.

Definition at line 93 of file PathFinderNetRouterHeuristic.hpp.

void torc::router::PathFinderNetRouterHeuristic::setSink

(

const Tilewire &

inSink

)

[inline, virtual]

Set the current routing target.

Implements torc::router::NetRouterHeuristicBase.

Definition at line 100 of file PathFinderNetRouterHeuristic.hpp.

void torc::router::PathFinderNetRouterHeuristic::nodeCost

(

RouteNode &

inNode

)

[inline, virtual]

Calculate the node cost based on distance to the sink and path length.

Todo:

provide an additional field in RouteNode to store path cost

Implements torc::router::NetRouterHeuristicBase.

Definition at line 107 of file PathFinderNetRouterHeuristic.hpp.

virtual void torc::router::PathFinderNetRouterHeuristic::reorderSinks	(	const Tilewire &	inSource,
		TilewireVector &	inSinks
	)			[inline, virtual]

Reorder the Sinks based on this heuristic.

Reimplemented from torc::router::NetRouterHeuristicBase.

Definition at line 186 of file PathFinderNetRouterHeuristic.hpp.

void torc::router::PathFinderNetRouterHeuristic::expandSegmentSinks	(	const Tilewire &	inTilewire,
		ArcVector &	outArcs
	)			[inline, virtual]

Heuristic handling of expansion of a node.

Reimplemented from torc::router::NetRouterHeuristicBase.

Definition at line 190 of file PathFinderNetRouterHeuristic.hpp.

---

Member Data Documentation

ArcUsage& torc::router::PathFinderNetRouterHeuristic::mArcUsage [protected]

ArcUsage reference.

Definition at line 64 of file PathFinderNetRouterHeuristic.hpp.

const Tiles& torc::router::PathFinderNetRouterHeuristic::mTiles [protected]

Tiles reference.

Definition at line 66 of file PathFinderNetRouterHeuristic.hpp.

Tilewire torc::router::PathFinderNetRouterHeuristic::mTargetSink [protected]

Target sink tilewire.

Definition at line 68 of file PathFinderNetRouterHeuristic.hpp.

const TileInfo* torc::router::PathFinderNetRouterHeuristic::mSinkTileInfo [protected]

Target sink tile information.

Definition at line 70 of file PathFinderNetRouterHeuristic.hpp.

boost::int32_t torc::router::PathFinderNetRouterHeuristic::mRow [protected]

Target row coordinate.

Definition at line 72 of file PathFinderNetRouterHeuristic.hpp.

boost::int32_t torc::router::PathFinderNetRouterHeuristic::mCol [protected]

Target column coordinate.

Definition at line 74 of file PathFinderNetRouterHeuristic.hpp.

TilewireVector torc::router::PathFinderNetRouterHeuristic::mSegmentBuf [protected]

Segment tilewire buffer.

Definition at line 77 of file PathFinderNetRouterHeuristic.hpp.

ArcVector torc::router::PathFinderNetRouterHeuristic::mArcsBuf [protected]

Arc buffer.

Definition at line 79 of file PathFinderNetRouterHeuristic.hpp.

PathFinderSharingMap* torc::router::PathFinderNetRouterHeuristic::mConflictMap [protected]

PathFinder sharing information.

Definition at line 82 of file PathFinderNetRouterHeuristic.hpp.

---

The documentation for this class was generated from the following file:

• torc/router/PathFinderNetRouterHeuristic.hpp
