torc::architecture::Tiles Class Reference

Tile map, tile type, and wire information for the family and device. More...

#include <Tiles.hpp>

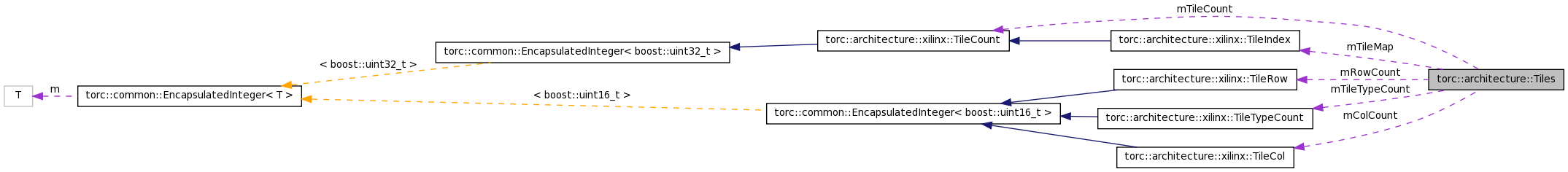

Collaboration diagram for torc::architecture::Tiles:

[legend]

List of all members.

Public Member Functions
	~Tiles (void)
	Non-virtual destructor.
const TileInfo &	getTileInfo (TileIndex inTileIndex) const
	Returns the TileInfo object for the specified tile.
const Array< const WireInfo > &	getWireInfo (TileTypeIndex inTileTypeIndex) const
	Returns the WireInfo array for the specified tile type.
const WireInfo &	getWireInfo (TileTypeIndex inTileTypeIndex, WireIndex inWireIndex) const
	Returns the WireInfo object for the specified tile type and wire index.
TileCount	getTileCount (void) const
	Returns the tile count for this device.
TileTypeCount	getTileTypeCount (void) const
	Returns the tile type count for this device.
TileRow	getRowCount (void) const
	Returns the row count for this device.
TileCol	getColCount (void) const
	Returns the column count for this device.
WireCount	getWireCount (TileTypeIndex inTileTypeIndex) const
	Returns the wire count for the specified tile type.
TileIndex	getTileIndex (TileRow inRow, TileCol inCol) const
	Returns the tile index for the given [row,column] pair.
const char *	getTileTypeName (TileTypeIndex inTileTypeIndex) const
	Returns the tile type name for the given tile type index.
TileIndex	findTileIndex (const string &inName) const
	Returns the tile index for the given tile name.
WireIndex	findWireIndex (TileTypeIndex inTileTypeIndex, const string &inName) const
	Returns the wire index for the given wire name in the given tile type.
Protected Types
typedef std::string	string
	Imported type name.
typedef boost::uint16_t	uint16_t
	Imported type name.
typedef boost::uint32_t	uint32_t
	Imported type name.
typedef xilinx::TileRow	TileRow
	Imported type name.
typedef xilinx::TileCol	TileCol
	Imported type name.
typedef xilinx::TileCount	TileCount
	Imported type name.
typedef xilinx::TileIndex	TileIndex
	Imported type name.
typedef xilinx::TileTypeCount	TileTypeCount
	Imported type name.
typedef xilinx::TileTypeIndex	TileTypeIndex
	Imported type name.
typedef xilinx::WireCount	WireCount
	Imported type name.
typedef xilinx::WireIndex	WireIndex
	Imported type name.
typedef std::pair< std::string, xilinx::TileIndex >	TileNameIndexPair
	Wrapper for a tile name with corresponding tile index.
typedef std::pair< std::string, xilinx::WireIndex >	WireNameIndexPair
	Wrapper for a wire name with corresponding wire index.
Protected Member Functions
size_t	readTileTypes (DigestStream &inStream)
	Read the family tile types.
size_t	readTileWireInfo (DigestStream &inStream)
	Read the family wire info.
size_t	readTileMap (DigestStream &inStream)
	Read the device tile map.
	Tiles (void)
	Protected constructor.
Static Protected Member Functions
static bool	CompareTilePairByName (const TileNameIndexPair &inA, const TileNameIndexPair &inB)
	Compare tile pairs by name, for ordering purposes.
static bool	CompareWirePairByName (const WireNameIndexPair &inA, const WireNameIndexPair &inB)
	Compare wire pairs by name, for ordering purposes.
Protected Attributes
TileCount	mTileCount
	The tile count for this device.
TileRow	mRowCount
	The tile row count for this device.
TileCol	mColCount
	The tile column count for this device.
TileIndex **	mTileMap
	The two-dimensional tile map for this device.
Array< const TileInfo >	mTiles
	The tile information for this device.
Array< const TileNameIndexPair >	mOrderedTileNames
	The tile name to tile index mapping for this device.
TileTypeCount	mTileTypeCount
	The number of tile types for this family.
Array< const CharStringWrapper >	mTileTypeNames
	The tile type names for this family.
Array2D< const WireInfo >	mWires
	The wire information for this family.
Array2D< const WireNameIndexPair >	mOrderedWireNames
	The wire name to wire index mapping for each tile type for this family.
Friends
class	DDB
	The database has access to our protected functions.
Classes
class	CharStringWrapper
	Wrapper around char* for use with the Array template. More...

---

Detailed Description

Tile map, tile type, and wire information for the family and device.

The tile map defines the tile layout for the current device. Every tile is associated with a tile type that has been defined for the family. The wire type information is likewise device independent, and is therefore included in this class.

Definition at line 35 of file Tiles.hpp.

---

Member Typedef Documentation

typedef std::string torc::architecture::Tiles::string [protected]

Imported type name.

Definition at line 41 of file Tiles.hpp.

typedef boost::uint16_t torc::architecture::Tiles::uint16_t [protected]

Imported type name.

Definition at line 42 of file Tiles.hpp.

typedef boost::uint32_t torc::architecture::Tiles::uint32_t [protected]

Imported type name.

Definition at line 43 of file Tiles.hpp.

typedef xilinx::TileRow torc::architecture::Tiles::TileRow [protected]

Imported type name.

Definition at line 44 of file Tiles.hpp.

typedef xilinx::TileCol torc::architecture::Tiles::TileCol [protected]

Imported type name.

Definition at line 45 of file Tiles.hpp.

typedef xilinx::TileCount torc::architecture::Tiles::TileCount [protected]

Imported type name.

Definition at line 46 of file Tiles.hpp.

typedef xilinx::TileIndex torc::architecture::Tiles::TileIndex [protected]

Imported type name.

Definition at line 47 of file Tiles.hpp.

typedef xilinx::TileTypeCount torc::architecture::Tiles::TileTypeCount [protected]

Imported type name.

Definition at line 48 of file Tiles.hpp.

typedef xilinx::TileTypeIndex torc::architecture::Tiles::TileTypeIndex [protected]

Imported type name.

Definition at line 49 of file Tiles.hpp.

typedef xilinx::WireCount torc::architecture::Tiles::WireCount [protected]

Imported type name.

Definition at line 50 of file Tiles.hpp.

typedef xilinx::WireIndex torc::architecture::Tiles::WireIndex [protected]

Imported type name.

Definition at line 51 of file Tiles.hpp.

typedef std::pair<std::string, xilinx::TileIndex> torc::architecture::Tiles::TileNameIndexPair [protected]

Wrapper for a tile name with corresponding tile index.

Definition at line 53 of file Tiles.hpp.

typedef std::pair<std::string, xilinx::WireIndex> torc::architecture::Tiles::WireNameIndexPair [protected]

Wrapper for a wire name with corresponding wire index.

Definition at line 55 of file Tiles.hpp.

---

Constructor & Destructor Documentation

torc::architecture::Tiles::Tiles

(

void

)

[inline, protected]

Protected constructor.

Definition at line 122 of file Tiles.hpp.

torc::architecture::Tiles::~Tiles

(

void

)

[inline]

Non-virtual destructor.

Definition at line 127 of file Tiles.hpp.

---

Member Function Documentation

size_t torc::architecture::Tiles::readTileTypes

(

DigestStream &

inStream

)

[protected]

Read the family tile types.

Todo:

Throw a proper exception.

Todo:

Throw a proper exception.

Definition at line 25 of file Tiles.cpp.

size_t torc::architecture::Tiles::readTileWireInfo

(

DigestStream &

inStream

)

[protected]

Read the family wire info.

Todo:

Throw a proper exception.

Todo:

Throw a proper exception.

Todo:

Throw a proper exception.

Definition at line 58 of file Tiles.cpp.

size_t torc::architecture::Tiles::readTileMap

(

DigestStream &

inStream

)

[protected]

Read the device tile map.

Todo:

Throw a proper exception.

Todo:

Throw a proper exception.

Definition at line 226 of file Tiles.cpp.

static bool torc::architecture::Tiles::CompareTilePairByName	(	const TileNameIndexPair &	inA,
		const TileNameIndexPair &	inB
	)			[inline, static, protected]

Compare tile pairs by name, for ordering purposes.

Definition at line 111 of file Tiles.hpp.

static bool torc::architecture::Tiles::CompareWirePairByName	(	const WireNameIndexPair &	inA,
		const WireNameIndexPair &	inB
	)			[inline, static, protected]

Compare wire pairs by name, for ordering purposes.

Definition at line 116 of file Tiles.hpp.

const TileInfo& torc::architecture::Tiles::getTileInfo

(

TileIndex

inTileIndex

)

const [inline]

Returns the TileInfo object for the specified tile.

Definition at line 136 of file Tiles.hpp.

const Array<const WireInfo>& torc::architecture::Tiles::getWireInfo

(

TileTypeIndex

inTileTypeIndex

)

const [inline]

Returns the WireInfo array for the specified tile type.

Definition at line 139 of file Tiles.hpp.

const WireInfo& torc::architecture::Tiles::getWireInfo	(	TileTypeIndex	inTileTypeIndex,
		WireIndex	inWireIndex
	)			const [inline]

Returns the WireInfo object for the specified tile type and wire index.

Definition at line 142 of file Tiles.hpp.

TileCount torc::architecture::Tiles::getTileCount

(

void

)

const [inline]

Returns the tile count for this device.

Definition at line 145 of file Tiles.hpp.

TileTypeCount torc::architecture::Tiles::getTileTypeCount

(

void

)

const [inline]

Returns the tile type count for this device.

Definition at line 147 of file Tiles.hpp.

TileRow torc::architecture::Tiles::getRowCount

(

void

)

const [inline]

Returns the row count for this device.

Definition at line 149 of file Tiles.hpp.

TileCol torc::architecture::Tiles::getColCount

(

void

)

const [inline]

Returns the column count for this device.

Definition at line 151 of file Tiles.hpp.

WireCount torc::architecture::Tiles::getWireCount

(

TileTypeIndex

inTileTypeIndex

)

const [inline]

Returns the wire count for the specified tile type.

Definition at line 153 of file Tiles.hpp.

TileIndex torc::architecture::Tiles::getTileIndex	(	TileRow	inRow,
		TileCol	inCol
	)			const [inline]

Returns the tile index for the given [row,column] pair.

Definition at line 157 of file Tiles.hpp.

const char* torc::architecture::Tiles::getTileTypeName

(

TileTypeIndex

inTileTypeIndex

)

const [inline]

Returns the tile type name for the given tile type index.

Definition at line 160 of file Tiles.hpp.

TileIndex torc::architecture::Tiles::findTileIndex

(

const string &

inName

)

const [inline]

Returns the tile index for the given tile name.

The search has logarithmic complexity.

Returns:

TileIndex(-1) if the name does not exist, or the corresponding tile index otherwise.

Definition at line 166 of file Tiles.hpp.

WireIndex torc::architecture::Tiles::findWireIndex	(	TileTypeIndex	inTileTypeIndex,
		const string &	inName
	)			const [inline]

Returns the wire index for the given wire name in the given tile type.

The search has logarithmic complexity.

Returns:

WireIndex(-1) if the name does not exist, or the corresponding wire index otherwise.

Definition at line 178 of file Tiles.hpp.

---

Friends And Related Function Documentation

friend class DDB [friend]

The database has access to our protected functions.

Definition at line 38 of file Tiles.hpp.

---

Member Data Documentation

TileCount torc::architecture::Tiles::mTileCount [protected]

The tile count for this device.

Definition at line 83 of file Tiles.hpp.

TileRow torc::architecture::Tiles::mRowCount [protected]

The tile row count for this device.

Definition at line 85 of file Tiles.hpp.

TileCol torc::architecture::Tiles::mColCount [protected]

The tile column count for this device.

Definition at line 87 of file Tiles.hpp.

TileIndex** torc::architecture::Tiles::mTileMap [protected]

The two-dimensional tile map for this device.

Definition at line 89 of file Tiles.hpp.

Array<const TileInfo> torc::architecture::Tiles::mTiles [protected]

The tile information for this device.

Definition at line 91 of file Tiles.hpp.

Array<const TileNameIndexPair> torc::architecture::Tiles::mOrderedTileNames [protected]

The tile name to tile index mapping for this device.

Definition at line 93 of file Tiles.hpp.

TileTypeCount torc::architecture::Tiles::mTileTypeCount [protected]

The number of tile types for this family.

Definition at line 95 of file Tiles.hpp.

Array<const CharStringWrapper> torc::architecture::Tiles::mTileTypeNames [protected]

The tile type names for this family.

Definition at line 97 of file Tiles.hpp.

Array2D<const WireInfo> torc::architecture::Tiles::mWires [protected]

The wire information for this family.

Definition at line 99 of file Tiles.hpp.

Array2D<const WireNameIndexPair> torc::architecture::Tiles::mOrderedWireNames [protected]

The wire name to wire index mapping for each tile type for this family.

Definition at line 101 of file Tiles.hpp.

---

The documentation for this class was generated from the following files:

• torc/architecture/Tiles.hpp
• torc/architecture/Tiles.cpp
