torc::architecture::WireUsage Class Reference

Encapsulation the design wire usage. More...

#include <WireUsage.hpp>

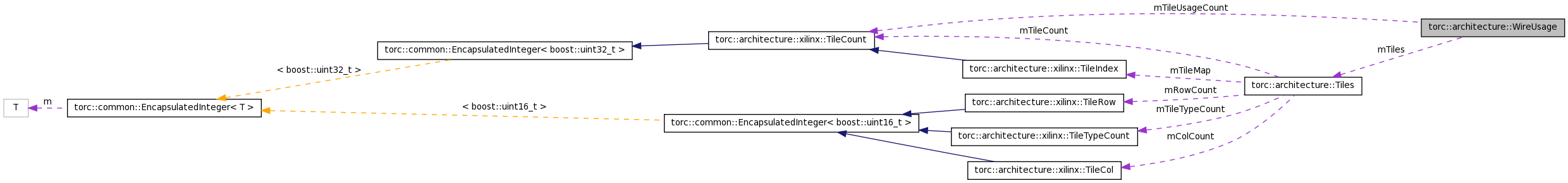

Collaboration diagram for torc::architecture::WireUsage:

[legend]

List of all members.

Public Member Functions
	WireUsage (const Tiles &inTiles)
	Public constructor.
	~WireUsage (void)
	Non-virtual destructor.
void	autosize (void)
	Size the wire usage according to the number of device tiles.
void	use (const Tilewire &inTilewire)
	Marks the specified tilewire as being used.
void	release (const Tilewire &inTilewire)
	Marks the specified tilewire as being unused.
void	clear (void)
	Marks all wires as being unused, without releasing the bitset objects.
bool	isUsed (const Tilewire &inTilewire)
	Determines whether the specified tilewire is in use.
uint32_t	getWireUsageCount (void) const
	Returns the number of wires in use.
TileCount	getTileUsageCount (void) const
	Returns the number of tiles that have been touched.
uint32_t	getBitCount (void) const
	Returns the number of bits allocated.
Protected Types
typedef boost::dynamic_bitset	dynamic_bitset
	Imported type name.
typedef xilinx::TileIndex	TileIndex
	Imported type name.
typedef xilinx::TileCount	TileCount
	Imported type name.
typedef xilinx::TileTypeIndex	TileTypeIndex
	Imported type name.
typedef xilinx::WireIndex	WireIndex
	Imported type name.
Protected Attributes
const Tiles &	mTiles
	Reference to the database Tiles object.
TileCount	mTileUsageCount
	The number of tiles for which bitsets are allocated.
Array< dynamic_bitset * >	mBitsets
	The wire usage bitset array.
uint32_t	mBitCount
	The number of bits allocated by the usage bitsets.
dynamic_bitset	mTileDirty
	The mask of tile bitsets that contain changes.

---

Detailed Description

Encapsulation the design wire usage.

This class uses a compact bitset representation to very efficiently track the wire usage of a design in an entire device. Internal bitset objects are maintained on a per-tile basis, and are not allocated until at least one wire in the tile has been marked used.

Definition at line 35 of file WireUsage.hpp.

---

Member Typedef Documentation

typedef boost::dynamic_bitset torc::architecture::WireUsage::dynamic_bitset [protected]

Imported type name.

Definition at line 38 of file WireUsage.hpp.

typedef xilinx::TileIndex torc::architecture::WireUsage::TileIndex [protected]

Imported type name.

Definition at line 39 of file WireUsage.hpp.

typedef xilinx::TileCount torc::architecture::WireUsage::TileCount [protected]

Imported type name.

Definition at line 40 of file WireUsage.hpp.

typedef xilinx::TileTypeIndex torc::architecture::WireUsage::TileTypeIndex [protected]

Imported type name.

Definition at line 41 of file WireUsage.hpp.

typedef xilinx::WireIndex torc::architecture::WireUsage::WireIndex [protected]

Imported type name.

Definition at line 42 of file WireUsage.hpp.

---

Constructor & Destructor Documentation

torc::architecture::WireUsage::WireUsage

(

const Tiles &

inTiles

)

[inline]

Public constructor.

Definition at line 57 of file WireUsage.hpp.

torc::architecture::WireUsage::~WireUsage

(

void

)

[inline]

Non-virtual destructor.

Definition at line 60 of file WireUsage.hpp.

---

Member Function Documentation

void torc::architecture::WireUsage::autosize

(

void

)

[inline]

Size the wire usage according to the number of device tiles.

Definition at line 68 of file WireUsage.hpp.

void torc::architecture::WireUsage::use

(

const Tilewire &

inTilewire

)

[inline]

Marks the specified tilewire as being used.

Definition at line 81 of file WireUsage.hpp.

void torc::architecture::WireUsage::release

(

const Tilewire &

inTilewire

)

[inline]

Marks the specified tilewire as being unused.

Definition at line 104 of file WireUsage.hpp.

void torc::architecture::WireUsage::clear

(

void

)

[inline]

Marks all wires as being unused, without releasing the bitset objects.

This capability allows the tracer to track the wires that it has visited while processing a particular net, and then to start again from scratch without incurring allocation and construction overheads.

Definition at line 121 of file WireUsage.hpp.

bool torc::architecture::WireUsage::isUsed

(

const Tilewire &

inTilewire

)

[inline]

Determines whether the specified tilewire is in use.

Definition at line 138 of file WireUsage.hpp.

uint32_t torc::architecture::WireUsage::getWireUsageCount

(

void

)

const [inline]

Returns the number of wires in use.

Todo:

Question: can we get away with only checking dirty bitsets? / skip this tile if it isn't dirty

Definition at line 151 of file WireUsage.hpp.

TileCount torc::architecture::WireUsage::getTileUsageCount

(

void

)

const [inline]

Returns the number of tiles that have been touched.

Definition at line 169 of file WireUsage.hpp.

uint32_t torc::architecture::WireUsage::getBitCount

(

void

)

const [inline]

Returns the number of bits allocated.

Definition at line 171 of file WireUsage.hpp.

---

Member Data Documentation

const Tiles& torc::architecture::WireUsage::mTiles [protected]

Reference to the database Tiles object.

Definition at line 45 of file WireUsage.hpp.

TileCount torc::architecture::WireUsage::mTileUsageCount [protected]

The number of tiles for which bitsets are allocated.

Definition at line 47 of file WireUsage.hpp.

Array<dynamic_bitset*> torc::architecture::WireUsage::mBitsets [protected]

The wire usage bitset array.

Definition at line 49 of file WireUsage.hpp.

uint32_t torc::architecture::WireUsage::mBitCount [protected]

The number of bits allocated by the usage bitsets.

Definition at line 51 of file WireUsage.hpp.

dynamic_bitset torc::architecture::WireUsage::mTileDirty [protected]

The mask of tile bitsets that contain changes.

Definition at line 53 of file WireUsage.hpp.

---

The documentation for this class was generated from the following file:

• torc/architecture/WireUsage.hpp
