torc::router::RouteNode Class Reference

An object that holds an arc and path information for routing. More...

#include <RouteNode.hpp>

Inheritance diagram for torc::router::RouteNode:

[legend]

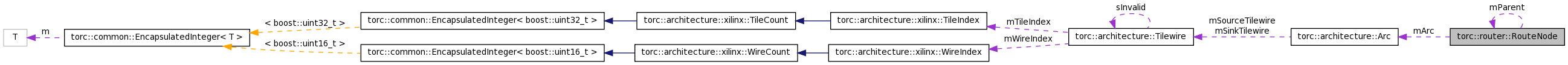

Collaboration diagram for torc::router::RouteNode:

[legend]

List of all members.

Public Member Functions
	RouteNode ()
	Null Constructor.
	RouteNode (Tilewire inSource, Tilewire inSink, boost::int32_t inDepth, RouteNode *inParent)
	Arc only constructor.
	RouteNode (Tilewire inSource, Tilewire inSink, boost::int32_t inCost, boost::int32_t inPathCost, boost::int32_t inDepth, RouteNode *inParent)
	Complete Tilewire based constructor.
	RouteNode (Arc inArc, boost::int32_t inDepth, RouteNode *inParent)
	Public Constructor.
	RouteNode (Arc inArc, boost::int32_t inCost, boost::int32_t inPathCost, boost::int32_t inDepth, RouteNode *inParent)
	Public Constructor.
const Arc &	getArc () const
	Get the associated Arc.
const Tilewire &	getSourceTilewire () const
	Get the source Tilewire.
const Tilewire &	getSinkTilewire () const
	Get the sink Tilewire.
const boost::int32_t	getCost () const
	Get the heuristic node cost.
void	setCost (boost::int32_t inHeuristicCost)
	Set the heuristic node cost.
const boost::int32_t	getPathCost () const
	Get the path cost.
void	setPathCost (boost::int32_t inPathCost)
	Set the path cost.
const boost::int32_t	getDepth () const
	Get the node depth.
void	setDepth (boost::int32_t inDepth)
	Set the node depth.
RouteNode *	getParent () const
	Get the node's parent.
RouteNode *	getTop ()
	Return the top node by tracing parent pointers.
bool	operator< (const RouteNode *rhs) const
Protected Types
typedef architecture::Tilewire	Tilewire
	Imported type name.
typedef architecture::Arc	Arc
	Imported type name.
Protected Attributes
architecture::Arc	mArc
	Arc that this node describes.
boost::int32_t	mCost
	Cost associated with this arc.
boost::int32_t	mPathCost
	Path cost for this arc.
boost::int32_t	mDepth
	Depth of node from the source.
RouteNode *	mParent
	Pointer to parent node.

---

Detailed Description

An object that holds an arc and path information for routing.

Definition at line 40 of file RouteNode.hpp.

---

Member Typedef Documentation

typedef architecture::Tilewire torc::router::RouteNode::Tilewire [protected]

Imported type name.

Definition at line 44 of file RouteNode.hpp.

typedef architecture::Arc torc::router::RouteNode::Arc [protected]

Imported type name.

Definition at line 46 of file RouteNode.hpp.

---

Constructor & Destructor Documentation

torc::router::RouteNode::RouteNode

(

)

[inline]

Null Constructor.

Definition at line 62 of file RouteNode.hpp.

torc::router::RouteNode::RouteNode	(	Tilewire	inSource,
		Tilewire	inSink,
		boost::int32_t	inDepth,
		RouteNode *	inParent
	)			[inline]

Arc only constructor.

Definition at line 64 of file RouteNode.hpp.

torc::router::RouteNode::RouteNode	(	Tilewire	inSource,
		Tilewire	inSink,
		boost::int32_t	inCost,
		boost::int32_t	inPathCost,
		boost::int32_t	inDepth,
		RouteNode *	inParent
	)			[inline]

Complete Tilewire based constructor.

Definition at line 67 of file RouteNode.hpp.

torc::router::RouteNode::RouteNode	(	Arc	inArc,
		boost::int32_t	inDepth,
		RouteNode *	inParent
	)			[inline]

Public Constructor.

Definition at line 72 of file RouteNode.hpp.

torc::router::RouteNode::RouteNode	(	Arc	inArc,
		boost::int32_t	inCost,
		boost::int32_t	inPathCost,
		boost::int32_t	inDepth,
		RouteNode *	inParent
	)			[inline]

Public Constructor.

Definition at line 75 of file RouteNode.hpp.

---

Member Function Documentation

const Arc& torc::router::RouteNode::getArc

(

)

const [inline]

Get the associated Arc.

Definition at line 80 of file RouteNode.hpp.

const Tilewire& torc::router::RouteNode::getSourceTilewire

(

void

)

const [inline]

Get the source Tilewire.

Definition at line 82 of file RouteNode.hpp.

const Tilewire& torc::router::RouteNode::getSinkTilewire

(

void

)

const [inline]

Get the sink Tilewire.

Definition at line 84 of file RouteNode.hpp.

const boost::int32_t torc::router::RouteNode::getCost

(

)

const [inline]

Get the heuristic node cost.

Definition at line 86 of file RouteNode.hpp.

void torc::router::RouteNode::setCost

(

boost::int32_t

inHeuristicCost

)

[inline]

Set the heuristic node cost.

Definition at line 88 of file RouteNode.hpp.

const boost::int32_t torc::router::RouteNode::getPathCost

(

)

const [inline]

Get the path cost.

Definition at line 90 of file RouteNode.hpp.

void torc::router::RouteNode::setPathCost

(

boost::int32_t

inPathCost

)

[inline]

Set the path cost.

Definition at line 92 of file RouteNode.hpp.

const boost::int32_t torc::router::RouteNode::getDepth

(

)

const [inline]

Get the node depth.

Definition at line 94 of file RouteNode.hpp.

void torc::router::RouteNode::setDepth

(

boost::int32_t

inDepth

)

[inline]

Set the node depth.

Definition at line 96 of file RouteNode.hpp.

RouteNode* torc::router::RouteNode::getParent

(

)

const [inline]

Get the node's parent.

Definition at line 98 of file RouteNode.hpp.

RouteNode* torc::router::RouteNode::getTop

(

)

[inline]

Return the top node by tracing parent pointers.

Definition at line 100 of file RouteNode.hpp.

---

Member Data Documentation

architecture::Arc torc::router::RouteNode::mArc [protected]

Arc that this node describes.

Definition at line 50 of file RouteNode.hpp.

boost::int32_t torc::router::RouteNode::mCost [protected]

Cost associated with this arc.

Definition at line 52 of file RouteNode.hpp.

boost::int32_t torc::router::RouteNode::mPathCost [protected]

Path cost for this arc.

Definition at line 54 of file RouteNode.hpp.

boost::int32_t torc::router::RouteNode::mDepth [protected]

Depth of node from the source.

Definition at line 56 of file RouteNode.hpp.

RouteNode* torc::router::RouteNode::mParent [protected]

Pointer to parent node.

Definition at line 58 of file RouteNode.hpp.

---

The documentation for this class was generated from the following file:

• torc/router/RouteNode.hpp
