torc::router::NetRouter Class Reference

Provides net routing based on the Nilsson graphsearch algorithm. More...

#include <NetRouter.hpp>

Inheritance diagram for torc::router::NetRouter:

[legend]

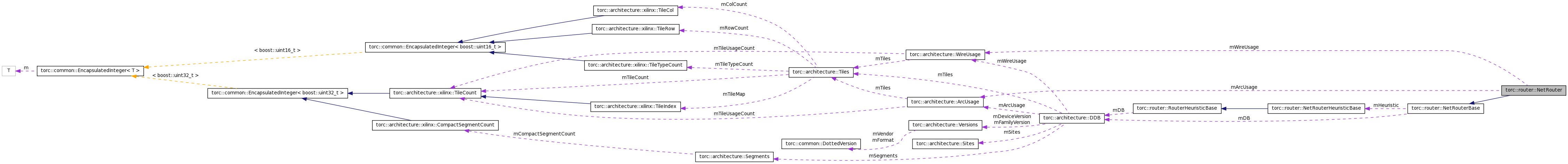

Collaboration diagram for torc::router::NetRouter:

[legend]

List of all members.

Public Member Functions
	NetRouter (DDB &inDB, NetRouterHeuristicBase *inHeuristic)
	Public Constructor.
	~NetRouter ()
	Destructor.
void	routeNet (RouteNet &net)
	Route a net.
void	resetStats ()
void	printStats (std::ostream &out)
Protected Member Functions
void	graphSearch (const Tilewire &inSource, TilewireVector &inSinks, RouteNodePtrVector &outRoute)
	Internal top level route function.
void	graphSearchLoop (const Tilewire &inSource, const Tilewire &inSink, RouteNodePtrVector &outRoute)
	Routing loop function.
void	graphSearchFilter (RouteNode *inParent, const Arc &inArc, RouteNodePtrVector &outRoute)
	Create a new node and put it into the appropriate structure.
void	recordPath (RouteNode *node, Tilewire key, Tilewire inSource, RouteNodePtrVector &outRoute)
	Add the newly found route to the outRoute vector.
void	clearContainers ()
	Delete nodes in containers and clear them.
bool	expandNetTerminals (Tilewire &inSource, TilewireVector &inSinks, RouteNodePtrVector &outRoute)
	Move net terminals out into the INT tiles.
bool	testDedicatedPath (Tilewire inSource, Tilewire inSink, RouteNodePtrVector &outRoute)
	Test for a dedicated routing path.
Tilewire	expandSourceTerminal (Tilewire inSource, RouteNodePtrVector &outRoute)
	Move the source terminal of a net in the sinkwards direction.
Tilewire	expandSinkTerminal (Tilewire inSink, RouteNodePtrVector &outRoute)
	Move the sink terminal of a net in the sourcewards direction.
Protected Attributes
ArcUsage &	mArcUsage
	Database reference.
WireUsage &	mWireUsage
	WireUsage reference.
RouteNodePtrQueue	mOrder
	Pointer to the heuristic for making routing decisions.
RouteNodePtrMap	mOpen
	Collection of candidate nodes the router can expand.
RouteNodePtrMap	mClosed
	Collection of nodes that have been expanded.
RouteNodePtrMap	mSkipped
	Collection of nodes skipped due to heuristic constraints.
RouteNodePtrVector	mPreRoute
	Vector of nodes created during pre-routing.
TilewireSet	mAuxClosed
	Set of Closed Tilewires to avoid issues with bidir resources.
TilewireVector	mSegmentBuf
	Scratch segment storage.
ArcVector	mArcsBuf
	Scratch arc storage.
boost::uint32_t	mSearchLimit
	Maximum number of nodes to explore before failing.
boost::uint32_t	mStatNets
	Number of nets routed since construction.
boost::uint32_t	mStatLoopPasses
	Number of passes through the main loop since construction.
boost::uint32_t	mStatExpanded
	Number of nodes created from expansion.
boost::uint32_t	mStatSources
	Number of net sources seen since construction.
boost::uint32_t	mStatSinks
	Number of net sinks seen since construction.
Private Types
typedef architecture::DDB	DDB
	Imported type names.
typedef architecture::ArcUsage	ArcUsage
typedef architecture::WireUsage	WireUsage
typedef architecture::Tilewire	Tilewire
typedef architecture::Arc	Arc
typedef architecture::TilewireVector	TilewireVector
typedef architecture::ArcVector	ArcVector
typedef std::priority_queue < RouteNode *, std::vector < RouteNode * > , RouteNodePtrCostCompare >	RouteNodePtrQueue
typedef boost::unordered_map < Tilewire, RouteNode *, boost::hash < architecture::Tilewire > >	RouteNodePtrMap
typedef boost::unordered_set < Tilewire, boost::hash < architecture::Tilewire > >	TilewireSet

---

Detailed Description

Provides net routing based on the Nilsson graphsearch algorithm.

The router can either return a vector of nodes or directly populate DDB usage.

Definition at line 42 of file NetRouter.hpp.

---

Member Typedef Documentation

typedef architecture::DDB torc::router::NetRouter::DDB [private]

Imported type names.

Reimplemented from torc::router::NetRouterBase.

Definition at line 45 of file NetRouter.hpp.

---

Constructor & Destructor Documentation

torc::router::NetRouter::NetRouter	(	DDB &	inDB,
		NetRouterHeuristicBase *	inHeuristic
	)			[inline]

Public Constructor.

Definition at line 105 of file NetRouter.hpp.

torc::router::NetRouter::~NetRouter

(

)

[inline]

Destructor.

Definition at line 119 of file NetRouter.hpp.

---

Member Function Documentation

void torc::router::NetRouter::routeNet

(

RouteNet &

net

)

[inline, virtual]

Route a net.

Todo:

Throw appropriate exception.

Todo:

Throw appropriate exception.

Implements torc::router::NetRouterBase.

Definition at line 122 of file NetRouter.hpp.

void torc::router::NetRouter::graphSearch	(	const Tilewire &	inSource,
		TilewireVector &	inSinks,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Internal top level route function.

Todo:

Count new RouteNodes?

Todo:

Set initial cost

Definition at line 201 of file NetRouter.hpp.

void torc::router::NetRouter::graphSearchLoop	(	const Tilewire &	inSource,
		const Tilewire &	inSink,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Routing loop function.

Todo:

Throw route failed exception.

Todo:

Throw route limited exception.

Todo:

adjust the node cost to be just the path cost?

Definition at line 250 of file NetRouter.hpp.

void torc::router::NetRouter::graphSearchFilter	(	RouteNode *	inParent,
		const Arc &	inArc,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Create a new node and put it into the appropriate structure.

Todo:

Need to check to see if we should be adjusting pointers in here.

Todo:

Heuristic check if node is filtered

Todo:

Heuristic cost of node

Todo:

Cases for different places the node can go.

Definition at line 305 of file NetRouter.hpp.

void torc::router::NetRouter::recordPath	(	RouteNode *	node,
		Tilewire	key,
		Tilewire	inSource,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Add the newly found route to the outRoute vector.

Definition at line 329 of file NetRouter.hpp.

void torc::router::NetRouter::clearContainers

(

)

[inline, protected]

Delete nodes in containers and clear them.

Todo:

Report statistics on nodes deleted?

Definition at line 354 of file NetRouter.hpp.

bool torc::router::NetRouter::expandNetTerminals	(	Tilewire &	inSource,
		TilewireVector &	inSinks,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Move net terminals out into the INT tiles.

Definition at line 370 of file NetRouter.hpp.

bool torc::router::NetRouter::testDedicatedPath	(	Tilewire	inSource,
		Tilewire	inSink,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Test for a dedicated routing path.

Definition at line 383 of file NetRouter.hpp.

Tilewire torc::router::NetRouter::expandSourceTerminal	(	Tilewire	inSource,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Move the source terminal of a net in the sinkwards direction.

Definition at line 407 of file NetRouter.hpp.

Tilewire torc::router::NetRouter::expandSinkTerminal	(	Tilewire	inSink,
		RouteNodePtrVector &	outRoute
	)			[inline, protected]

Move the sink terminal of a net in the sourcewards direction.

Definition at line 425 of file NetRouter.hpp.

---

Member Data Documentation

ArcUsage& torc::router::NetRouter::mArcUsage [protected]

Database reference.

ArcUsage reference.

Definition at line 64 of file NetRouter.hpp.

WireUsage& torc::router::NetRouter::mWireUsage [protected]

WireUsage reference.

Definition at line 66 of file NetRouter.hpp.

RouteNodePtrQueue torc::router::NetRouter::mOrder [protected]

Pointer to the heuristic for making routing decisions.

Priority queue of nodes to explore during routing, mirrors mOpen.

Definition at line 72 of file NetRouter.hpp.

RouteNodePtrMap torc::router::NetRouter::mOpen [protected]

Collection of candidate nodes the router can expand.

Definition at line 74 of file NetRouter.hpp.

RouteNodePtrMap torc::router::NetRouter::mClosed [protected]

Collection of nodes that have been expanded.

Definition at line 76 of file NetRouter.hpp.

RouteNodePtrMap torc::router::NetRouter::mSkipped [protected]

Collection of nodes skipped due to heuristic constraints.

Definition at line 78 of file NetRouter.hpp.

RouteNodePtrVector torc::router::NetRouter::mPreRoute [protected]

Vector of nodes created during pre-routing.

Definition at line 80 of file NetRouter.hpp.

TilewireSet torc::router::NetRouter::mAuxClosed [protected]

Set of Closed Tilewires to avoid issues with bidir resources.

Definition at line 82 of file NetRouter.hpp.

TilewireVector torc::router::NetRouter::mSegmentBuf [protected]

Scratch segment storage.

Definition at line 85 of file NetRouter.hpp.

ArcVector torc::router::NetRouter::mArcsBuf [protected]

Scratch arc storage.

Definition at line 87 of file NetRouter.hpp.

boost::uint32_t torc::router::NetRouter::mSearchLimit [protected]

Maximum number of nodes to explore before failing.

Definition at line 90 of file NetRouter.hpp.

boost::uint32_t torc::router::NetRouter::mStatNets [protected]

Number of nets routed since construction.

Definition at line 92 of file NetRouter.hpp.

boost::uint32_t torc::router::NetRouter::mStatLoopPasses [protected]

Number of passes through the main loop since construction.

Definition at line 94 of file NetRouter.hpp.

boost::uint32_t torc::router::NetRouter::mStatExpanded [protected]

Number of nodes created from expansion.

Definition at line 96 of file NetRouter.hpp.

boost::uint32_t torc::router::NetRouter::mStatSources [protected]

Number of net sources seen since construction.

Definition at line 98 of file NetRouter.hpp.

boost::uint32_t torc::router::NetRouter::mStatSinks [protected]

Number of net sinks seen since construction.

Definition at line 100 of file NetRouter.hpp.

---

The documentation for this class was generated from the following file:

• torc/router/NetRouter.hpp
