torc::bitstream::Spartan6PacketConstants Class Reference

Bitstream packet constants for Spartan 16 bit class architectures. More...

#include <Spartan6Packet.hpp>

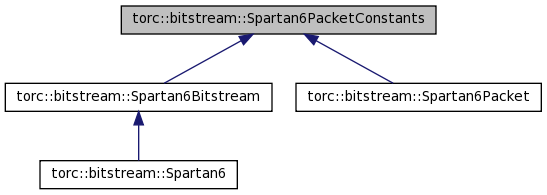

Inheritance diagram for torc::bitstream::Spartan6PacketConstants:

[legend]

List of all members.

Public Types
enum	EPacketType { ePacketType1 = 1, ePacketType2, ePacketTypeCount = 8 }
	Packet type enumeration. More...
enum	EOpcode {   eOpcodeNOP = 0, eOpcodeRead, eOpcodeWrite, eOpcodeReserved,   eOpcodeCount }
	Packet opcode enumeration. More...
enum	EPacket {   ePacketMaskType = 0xe000, ePacketShiftType = 13, ePacketMaskOpcode = 0x1800, ePacketShiftOpcode = 11,   ePacketMaskTypeAddress = 0x07e0, ePacketShiftTypeAddress = 5, ePacketMaskType1Count = 0x001f, ePacketShiftType1Count = 0,   ePacketMaskType2Count0 = 0xffff, ePacketShiftType2Count0 = 0, ePacketMaskType2Count1 = 0xffff, ePacketShiftType2Count1 = 0 }
	Packet subfields. More...
enum	ESynchronization {   eSynchronizationDummy = 0xffff, eSynchronizationSync0 = 0xaa99, eSynchronizationSync1 = 0x5566, eSynchronizationBusWidthSync0 = 0x0000,   eSynchronizationBusWidthSync1 = 0x00bb, eSynchronizationBusWidthDetect0 = 0x1122, eSynchronizationBusWidthDetect1 = 0x0044 }
	Synchronization words. More...

---

Detailed Description

Bitstream packet constants for Spartan 16 bit class architectures.

Definition at line 35 of file Spartan6Packet.hpp.

---

Member Enumeration Documentation

enum torc::bitstream::Spartan6PacketConstants::EPacketType

Packet type enumeration.

See also:

packet type: UG380, v2.2, July 30, 2010, Table 5-24, 5-26

Definition at line 40 of file Spartan6Packet.hpp.

enum torc::bitstream::Spartan6PacketConstants::EOpcode

Packet opcode enumeration.

See also:

Opcode Format: UG380, v2.2, July 30, 2010, Table 5-23

Definition at line 44 of file Spartan6Packet.hpp.

enum torc::bitstream::Spartan6PacketConstants::EPacket

Packet subfields.

See also:

type 1 packet format: UG380, v2.2, July 30, 2010, Table 5-24

type 2 packet format: UG380, v2.2, July 30, 2010, Table 5-26

type 2 packet format: UG380, v2.2, July 30, 2010, Table 5-27

Definition at line 49 of file Spartan6Packet.hpp.

enum torc::bitstream::Spartan6PacketConstants::ESynchronization

Synchronization words.

See also:

Configuration Sequence: UG380, v2.2, July 30, 2010, Table 5-50.

Definition at line 63 of file Spartan6Packet.hpp.

---

The documentation for this class was generated from the following file:

• torc/bitstream/Spartan6Packet.hpp
