torc::generic::Property Class Reference

#include <Property.hpp>

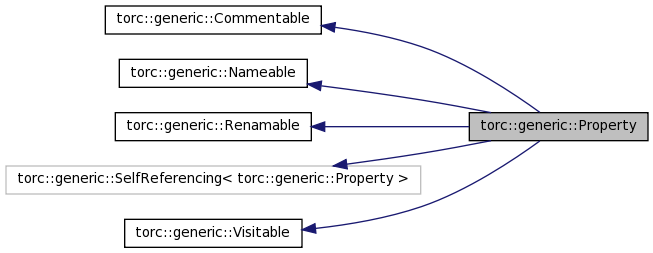

Inheritance diagram for torc::generic::Property:

[legend]

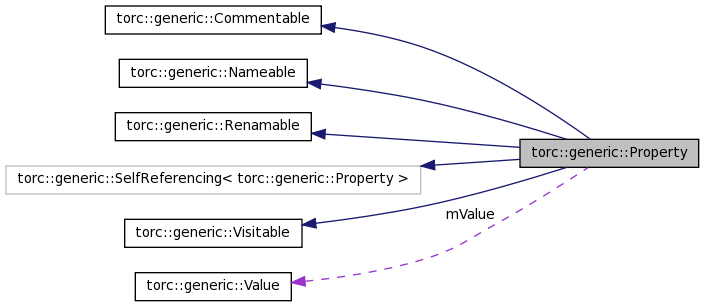

Collaboration diagram for torc::generic::Property:

[legend]

List of all members.

Public Types
typedef VisitorType< Property >	Visitor
Public Member Functions
virtual void	accept (BaseVisitor &inoutVisitor) throw (Error)
const Value	getValue () const throw ()
void	setValue (const Value &inSource) throw ()
const Unit	getUnit () const throw ()
void	setUnit (const Unit &inSource) throw ()
const std::string	getOwner () const throw ()
void	setOwner (const std::string &inSource) throw ()
void	getChildren (std::map< std::string, PropertySharedPtr > &outValues) const throw ()
template<typename _Action>
void	applyOnAllChildren (const _Action &action) throw (Error)
void	setChildren (const std::map< std::string, PropertySharedPtr > &inSource) throw ()
bool	addChildProperty (const std::string &inName, const PropertySharedPtr &inProperty) throw ()
Private Attributes
std::string	mOwner
Unit	mUnit
Value	mValue
SymTab< std::string, PropertySharedPtr >	mChildren
Friends
class	FactoryType< Property >
Classes
class	Factory

---

Detailed Description

Represents an EDIF property. EDIF supports placing of simple and nested properties on different objects.

Definition at line 50 of file Property.hpp.

---

Member Function Documentation

void torc::generic::Property::accept

(

BaseVisitor &

inoutVisitor

)

throw (Error) [virtual]

Recive a inoutVisitor to this class. The visit method of the inoutVisitor is called and a reference to this object is passed as a parameter. It has to be noted however, that a dynamic_cast is performed inside this method. If the cast fails, an appropriate exception is thrown by this method. This sitation can arise when the passed Visitor object does not inherit from the appropriate inoutVisitor specialization. See Visitor documentation for more details.

Parameters:

[in,out]

inoutVisitor

A reference to the inoutVisitor object

Exceptions:

Error

Visitor type inappropriate for visiting this object or any other error thrown by the Visitor::throw() method.

Implements torc::generic::Visitable.

Definition at line 37 of file Property.cpp.

const Value torc::generic::Property::getValue

(

)

const throw () [inline]

Get the Property inSource.

Returns:

Value of property.

Definition at line 206 of file Property.hpp.

void torc::generic::Property::setValue

(

const Value &

inSource

)

throw ()

Set the Property inSource.

Parameters:

[in]

inSource

Value of property.

Definition at line 66 of file Property.cpp.

const Unit torc::generic::Property::getUnit

(

)

const throw () [inline]

Get the Unit inSource.

Returns:

Unit of property.

Definition at line 216 of file Property.hpp.

void torc::generic::Property::setUnit

(

const Unit &

inSource

)

throw ()

Set the Property inSource unit.

Parameters:

[in]

inSource

Unit of property.

Definition at line 76 of file Property.cpp.

const std::string torc::generic::Property::getOwner

(

)

const throw () [inline]

Get the owner/source of this property.

Returns:

string Owner of this property

Definition at line 226 of file Property.hpp.

void torc::generic::Property::setOwner

(

const std::string &

inSource

)

throw ()

Set the owner/source of this property.

Parameters:

[in]

inSource

Owner of this property

Definition at line 86 of file Property.cpp.

void torc::generic::Property::getChildren

(

std::map< std::string, PropertySharedPtr > &

outValues

)

const throw () [inline]

Get the nested properties.

Returns:

map Containing properties

Get the nested properties.

Parameters:

[out]

outValues

map Containing properties

Definition at line 236 of file Property.hpp.

template<typename _Action>

void torc::generic::Property::applyOnAllChildren

(

const _Action &

action

)

throw (Error) [inline]

Apply action on all children.

Parameters:

[in]

action

Action to be applied

Definition at line 243 of file Property.hpp.

void torc::generic::Property::setChildren

(

const std::map< std::string, PropertySharedPtr > &

inSource

)

throw ()

Set the nested properties.

Parameters:

[in]

inSource

Map containing properties

Definition at line 96 of file Property.cpp.

bool torc::generic::Property::addChildProperty	(	const std::string &	inName,
		const PropertySharedPtr &	inProperty
	)			throw ()

Add a nested property to this property

Parameters:

[in]	inName	Nested property name
[in]	inProperty	Nested property

Definition at line 113 of file Property.cpp.

---

The documentation for this class was generated from the following files:

• torc/generic/om/Property.hpp
• torc/generic/om/Property.cpp
