torc::generic::Apply Class Reference
This class is used within simulate to describe input stimuli and expected responces over a certain time interval. More...
#include <Apply.hpp>

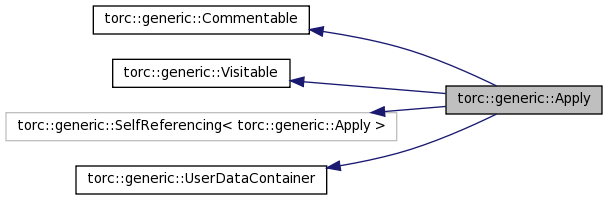

Inheritance diagram for torc::generic::Apply:

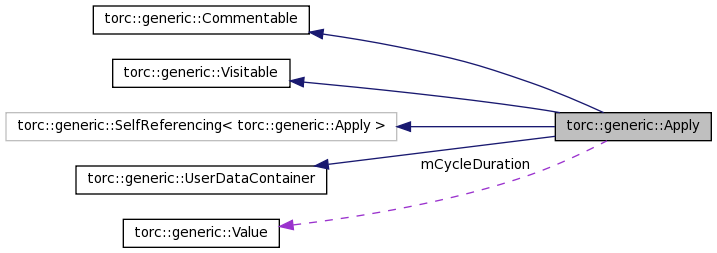

Collaboration diagram for torc::generic::Apply:
Public Types | |
| typedef VisitorType< Apply > | Visitor |
Public Member Functions | |
| virtual void | accept (BaseVisitor &inoutVisitor) throw (Error) |
| const int32_t | getNoOfCycle () const throw () |
| void | setNoOfCycle (const int32_t &inValue) throw () |
| const Value | getCycleDuration () const throw () |
| void | setCycleDuration (const Value &value) throw () |
| void | getLogicResponses (std::list< LogicalResponseSharedPtr > &outLogicResponces) const throw () |
| void | setLogicResponses (const std::list< LogicalResponseSharedPtr > &inLogicResponces) throw () |
| void | addLogicResponse (const LogicalResponseSharedPtr &inLogicResponce) throw () |
Private Member Functions | |
| Apply (const Apply &source) throw () | |
| Apply & | operator= (const Apply &source) throw () |
Private Attributes | |
| int32_t | mNoOfCycle |
| Value | mCycleDuration |
|
std::list < LogicalResponseSharedPtr > | mLogicResponses |
Friends | |
| class | FactoryType< Apply > |
Classes | |
| class | Factory |
Detailed Description
This class is used within simulate to describe input stimuli and expected responces over a certain time interval.Definition at line 38 of file Apply.hpp.
Member Typedef Documentation
Member Function Documentation
| void torc::generic::Apply::accept | ( | BaseVisitor & | inoutVisitor | ) | throw (Error) [virtual] |
Recive a inoutVisitor to this class. The visit method of the inoutVisitor is called and a reference to this object is passed as a parameter. It has to be noted however, that a dynamic_cast is performed inside this method. If the cast fails, an appropriate exception is thrown by this method. This sitation can arise when the passed Visitor object does not inherit from the appropriate inoutVisitor specialization. See Visitor documentation for more details.
- Parameters:
-
[in,out] inoutVisitor A reference to the inoutVisitor object
- Exceptions:
-
Error Visitor type inappropriate for visiting this object or any other error thrown by the Visitor::throw() method.
Implements torc::generic::Visitable.
| const int32_t torc::generic::Apply::getNoOfCycle | ( | ) | const throw () [inline] |
| void torc::generic::Apply::setNoOfCycle | ( | const int32_t & | inValue | ) | throw () |
| const Value torc::generic::Apply::getCycleDuration | ( | ) | const throw () [inline] |
| void torc::generic::Apply::setCycleDuration | ( | const Value & | value | ) | throw () |
| void torc::generic::Apply::getLogicResponses | ( | std::list< LogicalResponseSharedPtr > & | outLogicResponces | ) | const throw () [inline] |
| void torc::generic::Apply::setLogicResponses | ( | const std::list< LogicalResponseSharedPtr > & | inLogicResponces | ) | throw () |
| void torc::generic::Apply::addLogicResponse | ( | const LogicalResponseSharedPtr & | inLogicResponce | ) | throw () |
The documentation for this class was generated from the following files:
