torc::generic::ScalarPort Class Reference

Represents a standalone port. More...

#include <ScalarPort.hpp>

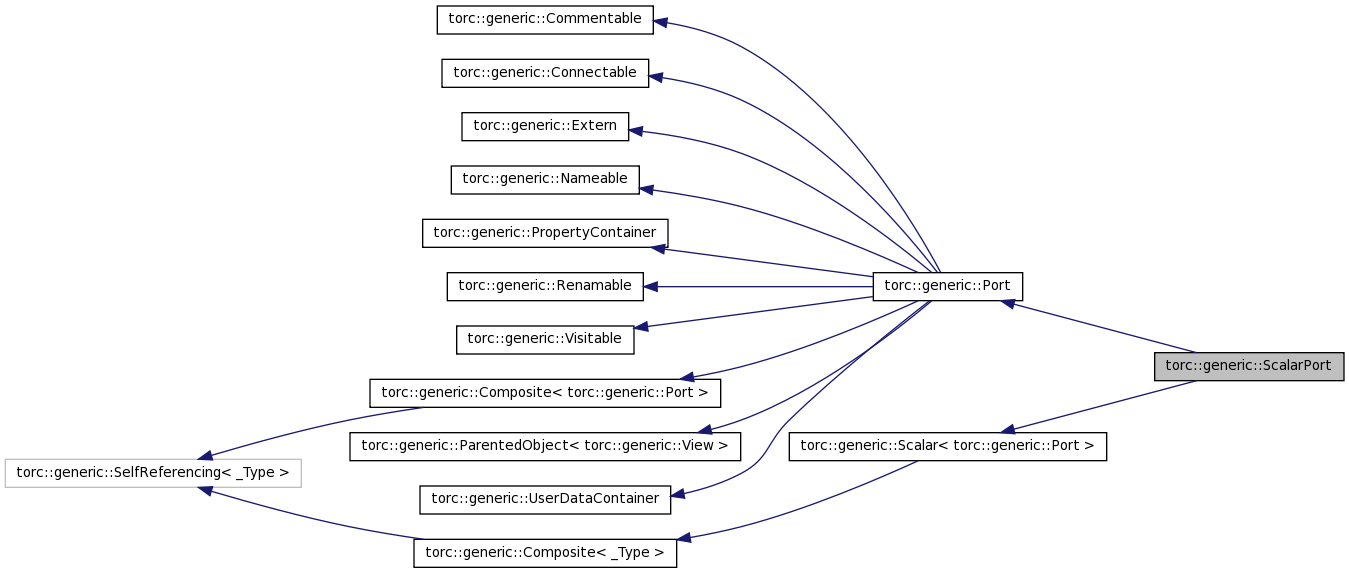

Inheritance diagram for torc::generic::ScalarPort:

[legend]

Collaboration diagram for torc::generic::ScalarPort:

[legend]

List of all members.

Public Types
typedef VisitorType< ScalarPort >	Visitor
Public Member Functions
virtual void	accept (BaseVisitor &inoutVisitor) throw (Error)
virtual Connection	connect (const NetSharedPtr &inNet) throw (Error)
virtual void	disconnect (const Connection &inConnection) throw (Error)
Friends
class	FactoryType< ScalarPort >
Classes
class	Factory

---

Detailed Description

Represents a standalone port.

The ScalarPort class represents a standalone port object. Such objects in EDIF are declard using the (port portName ... ) syntax.

Definition at line 44 of file ScalarPort.hpp.

---

Member Function Documentation

void torc::generic::ScalarPort::accept

(

BaseVisitor &

inoutVisitor

)

throw (Error) [virtual]

Recive a inoutVisitor to this class. The visit method of the inoutVisitor is called and a reference to this object is passed as a parameter. It has to be noted however, that a dynamic_cast is performed inside this method. If the cast fails, an appropriate exception is thrown by this method. This sitation can arise when the passed Visitor object does not inherit from the appropriate inoutVisitor specialization. See Visitor documentation for more details.

Parameters:

[in,out]

inoutVisitor

A reference to the inoutVisitor object

Exceptions:

Error

Visitor type inappropriate for visiting this object or any other error thrown by the Visitor::throw() method.

Implements torc::generic::Visitable.

Definition at line 87 of file ScalarPort.cpp.

Connectable::Connection torc::generic::ScalarPort::connect

(

const NetSharedPtr &

inNet

)

throw (Error) [virtual]

Exceptions:

	Error	Pointer to the Net object does not exists Id : eMessageIdErrorPointerToItemDoesNotExist Context Data Pointe to Net object - Net
	Error	Net size does not match with scalar port size Id : eMessageIdErrorItemSizeMismatch Context Data Net Size - SizeType Scalar port Size - SizeType

Implements torc::generic::Connectable.

Definition at line 101 of file ScalarPort.cpp.

---

The documentation for this class was generated from the following files:

• torc/generic/om/ScalarPort.hpp
• torc/generic/om/ScalarPort.cpp
