torc::generic::PathDelay Class Reference

This class associates a delay with a specified chain of events. Delay contains the time from first event to final event. More...

#include <PathDelay.hpp>

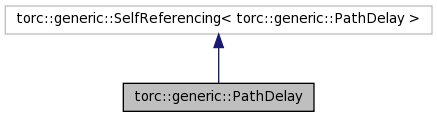

Inheritance diagram for torc::generic::PathDelay:

[legend]

Collaboration diagram for torc::generic::PathDelay:

[legend]

List of all members.

Public Member Functions
const Value::MiNoMax	getDelay () const throw ()
void	setDelay (const Value::MiNoMax &inSource) throw ()
void	getEvents (std::list< EventSharedPtr > &outEvents) const throw ()
void	setEvents (const std::list< EventSharedPtr > &inEvents) throw ()
void	addEvent (const EventSharedPtr &inEvent) throw (Error)
Private Member Functions
	PathDelay (const PathDelay &inSource)
PathDelay &	operator= (const PathDelay &inSource) throw ()
Private Attributes
Value::MiNoMax	mDelay
std::list< EventSharedPtr >	mEvents
Friends
class	FactoryType< PathDelay >
Classes
class	Factory

---

Detailed Description

This class associates a delay with a specified chain of events. Delay contains the time from first event to final event.

Definition at line 37 of file PathDelay.hpp.

---

Member Function Documentation

const Value::MiNoMax torc::generic::PathDelay::getDelay

(

)

const throw () [inline]

Get delay

Returns:

MiNoMax value

Definition at line 123 of file PathDelay.hpp.

void torc::generic::PathDelay::setDelay

(

const Value::MiNoMax &

inSource

)

throw ()

Set delay

Parameters:

[in]

inSource

Delay value.

Definition at line 59 of file PathDelay.cpp.

void torc::generic::PathDelay::getEvents

(

std::list< EventSharedPtr > &

outEvents

)

const throw () [inline]

Get the list of events associated with this path delay.

Returns:

outEvents List of events associated with this path delay

Definition at line 128 of file PathDelay.hpp.

void torc::generic::PathDelay::setEvents

(

const std::list< EventSharedPtr > &

inEvents

)

throw ()

Set all the events of this forbiddenEvent.

Parameters:

[in]

inEvents

List of events to be appended to

Set all the events of this forbiddenEvent.

Parameters:

[out]

inEvents

List of events to be appended to

Definition at line 69 of file PathDelay.cpp.

void torc::generic::PathDelay::addEvent

(

const EventSharedPtr &

inEvent

)

throw (Error)

Add an event to the list of events. Empty pointer is ignored.

Parameters:

[in]

inEvent

Pointer to event to be added.

Definition at line 86 of file PathDelay.cpp.

---

The documentation for this class was generated from the following files:

• torc/generic/om/PathDelay.hpp
• torc/generic/om/PathDelay.cpp
