torc::generic::Design::Factory Class Reference

#include <Design.hpp>

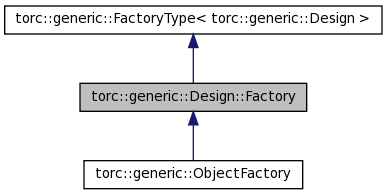

Inheritance diagram for torc::generic::Design::Factory:

Collaboration diagram for torc::generic::Design::Factory:

List of all members.

Public Member Functions

virtual DesignSharedPtr newDesignPtr (const std::string &inName, const RootSharedPtr &inRootPtr, const std::string &inCellRefName, const std::string &inLibraryRefName, const std::string &inOriginalName=std::string()) throw (Error)

Detailed Description

Convenience class for creating a design

Definition at line 68 of file Design.hpp.

Member Function Documentation

DesignSharedPtr torc::generic::Design::Factory::newDesignPtr	(	const std::string &	inName,
		const RootSharedPtr &	inRootPtr,
		const std::string &	inCellRefName,
		const std::string &	inLibraryRefName,
		const std::string &	inOriginalName = `std::string()`
	)			throw (Error) `[virtual]`

Create a design

Parameters:

`[in]`	inName	Name of the design to be created.
`[in]`	inRootPtr	Pointer to parented(Root) object.
`[in]`	inCellRefName	The top level cell ref name for this design.
`[in]`	inLibraryRefName	The top level Library ref name for this design.
`[in]`	inOriginalName	Original name of the design [optional].

Returns:: Pointer to created design.

Definition at line 27 of file Design.cpp.

The documentation for this class was generated from the following files:

torc/generic/om/Design.hpp
torc/generic/om/Design.cpp


Public Member Functions
virtual DesignSharedPtr	newDesignPtr (const std::string &inName, const RootSharedPtr &inRootPtr, const std::string &inCellRefName, const std::string &inLibraryRefName, const std::string &inOriginalName=std::string()) throw (Error)
