torc::architecture::Site Class Reference

Encapsulation of a device logic site. More...

#include <Site.hpp>

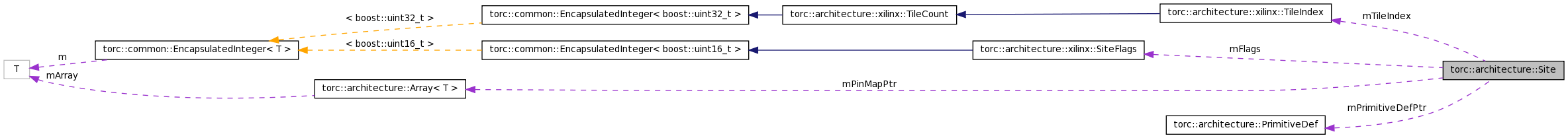

Collaboration diagram for torc::architecture::Site:

[legend]

List of all members.

Public Types
typedef Array< const WireIndex >	WireIndexArray
	Array of constant wire indexes.
Public Member Functions
	Site (void)
	Null constructor (for use in containers only).
const Tilewire	getPinTilewire (const std::string &inName) const
	Returns the Tilewire associated with the specified pin name.
const string &	getName (void) const
	Returns the site name.
const PrimitiveDef *	getPrimitiveDefPtr (void) const
	Returns a pointer to the associated primitive definition.
TileIndex	getTileIndex (void) const
	Returns the index of the containing tile.
SiteFlags	getFlags (void) const
	Returns the flags associated with this site.
const WireIndexArray *	getPinMapPtr (void) const
	Returns the pin to wire map for this site.
Protected Types
typedef std::string	string
	Imported type name.
typedef xilinx::PinIndex	PinIndex
	Imported type name.
typedef xilinx::TileIndex	TileIndex
	Imported type name.
typedef xilinx::WireIndex	WireIndex
	Imported type name.
typedef xilinx::SiteFlags	SiteFlags
	Imported type name.
Protected Member Functions
	Site (const string &inName, const PrimitiveDef &inPrimitiveDef, TileIndex inTileIndex, SiteFlags inFlags, const WireIndexArray &inPinMap)
	Protected constructor.
Protected Attributes
string	mName
	The logic site name.
const PrimitiveDef *	mPrimitiveDefPtr
	Pointer to the associated primitive definition.
TileIndex	mTileIndex
	The index of the containing tile.
SiteFlags	mFlags
	The flags associated with this site.
const WireIndexArray *	mPinMapPtr
	The pin to wire map for this site.
Friends
class	Sites
	The Sites class has access to our internals.

---

Detailed Description

Encapsulation of a device logic site.

Definition at line 30 of file Site.hpp.

---

Member Typedef Documentation

typedef std::string torc::architecture::Site::string [protected]

Imported type name.

Definition at line 36 of file Site.hpp.

typedef xilinx::PinIndex torc::architecture::Site::PinIndex [protected]

Imported type name.

Definition at line 37 of file Site.hpp.

typedef xilinx::TileIndex torc::architecture::Site::TileIndex [protected]

Imported type name.

Definition at line 38 of file Site.hpp.

typedef xilinx::WireIndex torc::architecture::Site::WireIndex [protected]

Imported type name.

Definition at line 39 of file Site.hpp.

typedef xilinx::SiteFlags torc::architecture::Site::SiteFlags [protected]

Imported type name.

Definition at line 40 of file Site.hpp.

typedef Array<const WireIndex> torc::architecture::Site::WireIndexArray

Array of constant wire indexes.

Definition at line 44 of file Site.hpp.

---

Constructor & Destructor Documentation

torc::architecture::Site::Site	(	const string &	inName,
		const PrimitiveDef &	inPrimitiveDef,
		TileIndex	inTileIndex,
		SiteFlags	inFlags,
		const WireIndexArray &	inPinMap
	)			[inline, protected]

Protected constructor.

Definition at line 59 of file Site.hpp.

torc::architecture::Site::Site

(

void

)

[inline]

Null constructor (for use in containers only).

Definition at line 67 of file Site.hpp.

---

Member Function Documentation

const Tilewire torc::architecture::Site::getPinTilewire

(

const std::string &

inName

)

const [inline]

Returns the Tilewire associated with the specified pin name.

Definition at line 70 of file Site.hpp.

const string& torc::architecture::Site::getName

(

void

)

const [inline]

Returns the site name.

Definition at line 79 of file Site.hpp.

const PrimitiveDef* torc::architecture::Site::getPrimitiveDefPtr

(

void

)

const [inline]

Returns a pointer to the associated primitive definition.

Definition at line 81 of file Site.hpp.

TileIndex torc::architecture::Site::getTileIndex

(

void

)

const [inline]

Returns the index of the containing tile.

Definition at line 83 of file Site.hpp.

SiteFlags torc::architecture::Site::getFlags

(

void

)

const [inline]

Returns the flags associated with this site.

Definition at line 85 of file Site.hpp.

const WireIndexArray* torc::architecture::Site::getPinMapPtr

(

void

)

const [inline]

Returns the pin to wire map for this site.

Definition at line 87 of file Site.hpp.

---

Friends And Related Function Documentation

friend class Sites [friend]

The Sites class has access to our internals.

Definition at line 34 of file Site.hpp.

---

Member Data Documentation

string torc::architecture::Site::mName [protected]

The logic site name.

Definition at line 48 of file Site.hpp.

const PrimitiveDef* torc::architecture::Site::mPrimitiveDefPtr [protected]

Pointer to the associated primitive definition.

Definition at line 50 of file Site.hpp.

TileIndex torc::architecture::Site::mTileIndex [protected]

The index of the containing tile.

Definition at line 52 of file Site.hpp.

SiteFlags torc::architecture::Site::mFlags [protected]

The flags associated with this site.

Definition at line 54 of file Site.hpp.

const WireIndexArray* torc::architecture::Site::mPinMapPtr [protected]

The pin to wire map for this site.

Definition at line 56 of file Site.hpp.

---

The documentation for this class was generated from the following file:

• torc/architecture/Site.hpp
