torc::architecture::PrimitiveConn Class Reference
Encapsulation of a PrimitiveDef internal connection. This class is analogous to a permanent net with one and only source pin. All PrimitiveConn objects are initialized from a family database by the Sites class. More...
#include <PrimitiveConn.hpp>

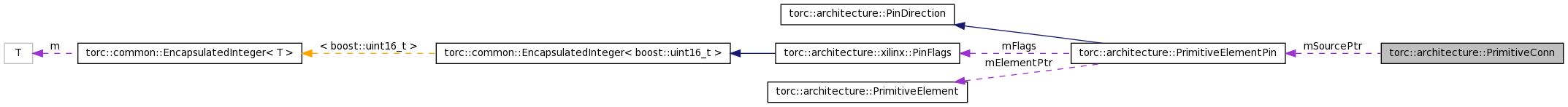

Collaboration diagram for torc::architecture::PrimitiveConn:
Public Member Functions | |
| const PrimitiveElementPin * | getSourcePtr (void) const |
| Returns a pointer to the source primitive element pin. | |
| const PrimitiveElementPinPtrVector & | getSinks (void) const |
| Returns a vector of pointers to the sink primitive element pins. | |
Protected Attributes | |
| const PrimitiveElementPin * | mSourcePtr |
| Pointer to the source primitive element pin. | |
| PrimitiveElementPinPtrVector | mSinks |
| Vector of pointers to the sink primitive element pins. | |
Friends | |
| class | Sites |
| The Sites class has access to our internals. | |
| class | torc::architecture::architecture::PrimitiveConnUnitTest |
| Our unit test class has access to our internals. | |
Detailed Description
Encapsulation of a PrimitiveDef internal connection. This class is analogous to a permanent net with one and only source pin. All PrimitiveConn objects are initialized from a family database by the Sites class.Definition at line 32 of file PrimitiveConn.hpp.
Member Function Documentation
| const PrimitiveElementPin* torc::architecture::PrimitiveConn::getSourcePtr | ( | void | ) | const [inline] |
Returns a pointer to the source primitive element pin.
Definition at line 47 of file PrimitiveConn.hpp.
| const PrimitiveElementPinPtrVector& torc::architecture::PrimitiveConn::getSinks | ( | void | ) | const [inline] |
Returns a vector of pointers to the sink primitive element pins.
Definition at line 49 of file PrimitiveConn.hpp.
Friends And Related Function Documentation
friend class Sites [friend] |
friend class torc::architecture::architecture::PrimitiveConnUnitTest [friend] |
Member Data Documentation
const PrimitiveElementPin* torc::architecture::PrimitiveConn::mSourcePtr [protected] |
Vector of pointers to the sink primitive element pins.
Definition at line 43 of file PrimitiveConn.hpp.
The documentation for this class was generated from the following file:
- torc/architecture/PrimitiveConn.hpp
